1-87631-6 | AMP

Socket housing, 20 pole, pitch 2.54 mm, straight, black, 1-87631-6

Order No.: 37P6422
EAN: 4099889961799
MPN:
1-87631-6
Series: AMPMODU

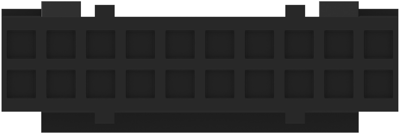

1-87631-6 AMP PCB Connection Systems Image 1

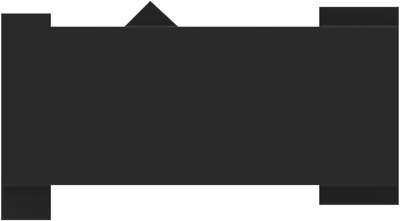

1-87631-6 AMP PCB Connection Systems Image 2

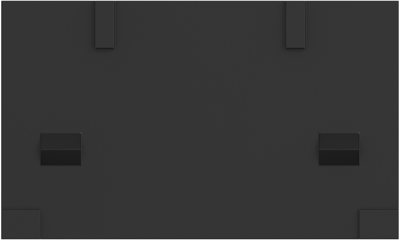

1-87631-6 AMP PCB Connection Systems Image 3

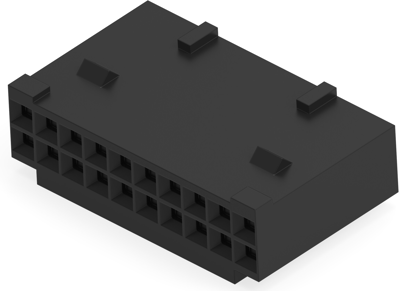

1-87631-6 AMP PCB Connection Systems Image 4

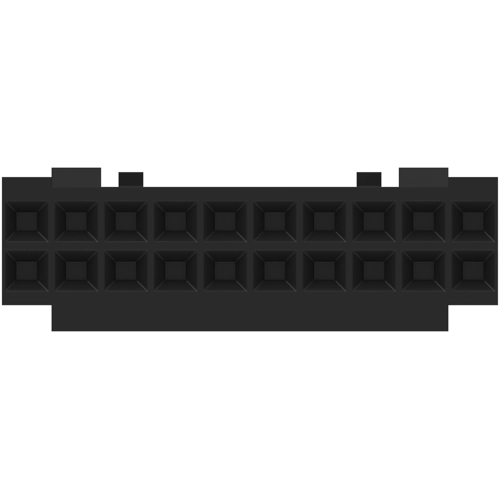

1-87631-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.1761 € *
Available in 5 Days: 455 pcs. - if ordered today
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
10 pcs.
5.6763 €
50 pcs.
5.1170 €
100 pcs.
4.6053 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-87631-6, AMP

Wire-to-Board, Wire & Cable, 20 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Number of positions: 20
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Filter Property Value
Orientation straight
Number of rows 2
Type of locking Yes
Colour black
Connection crimp connection
Rated voltage 150 V
Contact type socket
Grid 2.54 mm
Rated current 3 A
Pin number 20 pole
Version socket housing
Logistics
Property Value
Customs tariff number 85472000
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
