1-87175-4 | AMP

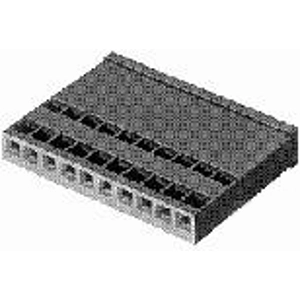

Socket housing, 6 pole, pitch 2.54 mm, straight, black, 1-87175-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.0583 € *
Available in 12 Days: 3,500 pcs. - if ordered today
Socket housing, 1-87175-4, AMP
Housing, Receptacle, Wire-to-Board, 6 Position, 2.54 mm Centerline, Crimp, 1 Row, Black, Wire & Cable, Power & Signal.
Features
- Fast, easy installation with no additional locking hardware required
- Modular design permits end-to-end stacking
- Self-retaining contacts provide permanent connection with quick connect and disconnect
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
