1-87133-0 | AMP

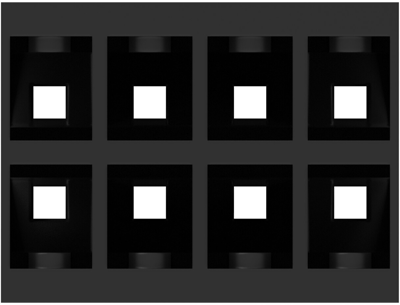

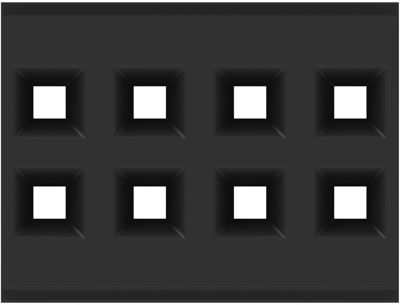

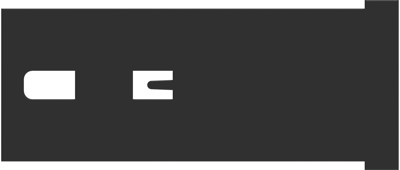

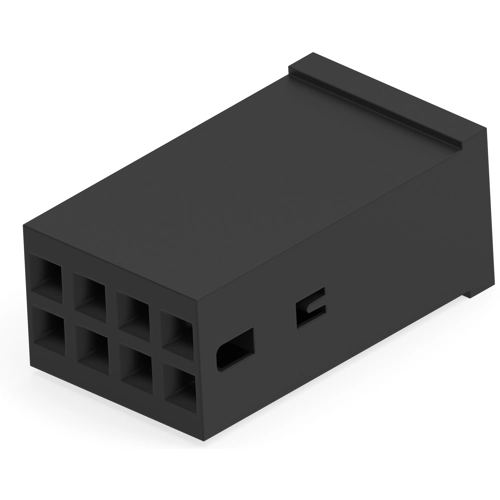

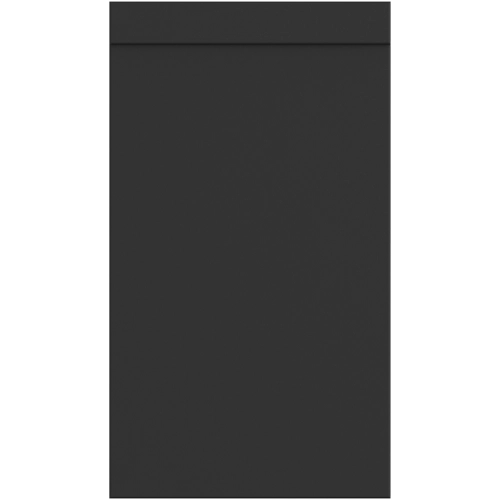

Socket housing, 8 pole, pitch 2.54 mm, straight, black, 1-87133-0
Unit Price (€ / pc.)
1.3328 € *
Available in 5 Days: 487 pcs. - if ordered today
PCB Connection System, 1-87133-0, AMP
Wire-to-Board, Wire & Cable, 8 Position
Technical Data
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | black | |
| Additional parts | unequipped | |
| Pin number | 8 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Version | socket housing | |
| Rated current | 3 A | |
| Number of rows | 2 | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
