1-826646-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, green, 1-826646-0

Order No.: 59F2112
EAN: 4099891004927
MPN:
1-826646-0
1-0826646-0
Series: AMPMODU
1-826646-0 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Available in 5 Days: 5,920 pcs. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6537 €
25 pcs.
2.4752 €
50 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.

With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 5.8 mm, type ..-0826.

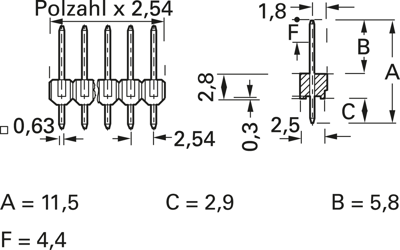

With straight solder pins. Pins gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 11.5 mm. Dimension C: 2.9 mm. Dimension F: 4.4 mm.

Type: 1-0826646-0, 10-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable Yes
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 5 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour green
Pin number 10 pole
Connection PCB connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
