1-826631-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, angled, green, 1-826631-0

Order No.: 59F2278
EAN: 4099891005351
MPN:
1-826631-0
1-0826631-0
Series: AMPMODU

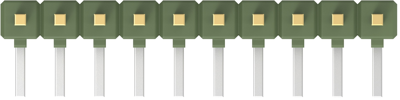

1-826631-0 AMP PCB Connection Systems Image 1

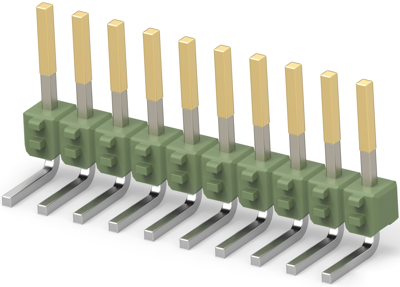

1-826631-0 AMP PCB Connection Systems Image 2

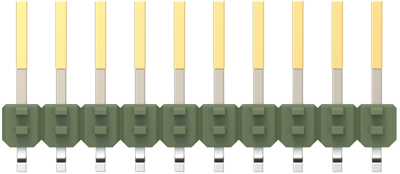

1-826631-0 AMP PCB Connection Systems Image 3

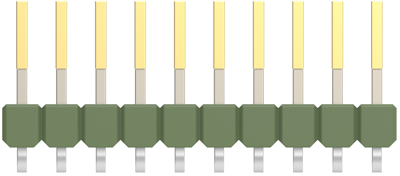

1-826631-0 AMP PCB Connection Systems Image 4

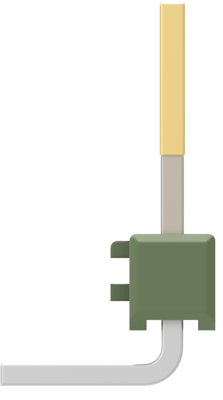

1-826631-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Available in 5 Days: 5,521 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
1.1543 €
50 pcs.
1.0472 €
100 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.

With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 6.7 mm, type ..-0826.

Angled pins, gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 2.9 mm. Dimension C: 1.3 mm. Dimension F: 5.5 mm.

Type: 1-0826631-0, 10-pole

Technical specifications
Filter Property Value
Pin number 10 pole
Additional parts equipped
Connection PCB connection
Number of rows 1
Version pin header
Rated current 5 A
Contact type pin
Connection plating tin-plated
Type of locking Yes
Colour green
contact surface gold-plated
Grid 2.54 mm
Orientation angled
Breakable Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
