1-826467-0 | AMP
Pin header, 10 pole, pitch 2.54 mm, straight, black, 1-826467-0
Unit Price (€ / pc.)
2.2848 € *
Available in 5 Days: 1,712 pcs. - if ordered today
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
2.1182 €
25 pcs.
1.9754 €
50 pcs.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale

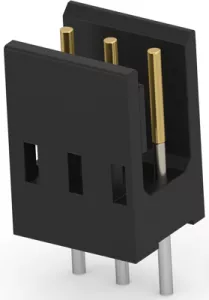

Pin headers with protective collar, type TE Connectivity/AMP Modu II.

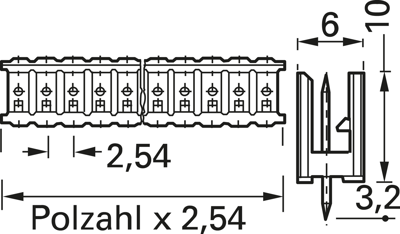

With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.
Single-row, with straight solder pins, type ..-0826.
Type: 1-0826467-0, 10-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Pin number | 10 pole | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Version | pin header | |
| Contact type | pin | |
| Orientation | straight | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Colour | black | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
