1-825437-3 | AMP
Pin header, 13 pole, pitch 2.54 mm, angled, green, 1-825437-3
Unit Price (€ / pc.)
3.4510 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4510 €
10 pcs.
3.1773 €
50 pcs.
2.8798 €
100 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB mounting, angled, single-row, TE Connectivity AMP Modu II

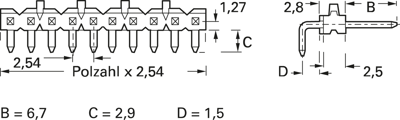

With 2.54 mm grid, with 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated, tinned solder pins. Dimensions: B 6.7 mm, C 2.9 mm, D 1.5 mm.
Type: 1-0825437-3
Number of poles: 13-pole
Technical specifications
| Connection plating | tin-plated | |
| Version | pin header | |
| Breakable | Yes | |
| contact surface | gold-plated | |
| Connection | PCB connection | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated current | 5 A | |
| Pin number | 13 pole | |
| Colour | green | |
| Type of locking | Yes | |
| Orientation | angled | |
| Number of rows | 1 | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
