1-825437-2 | AMP
Pin header, 12 pole, pitch 2.54 mm, angled, green, 1-825437-2
Unit Price (€ / pc.)
1.9040 € *
Available: 27 pcs.
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB mounting, angled, single-row, TE Connectivity AMP Modu II

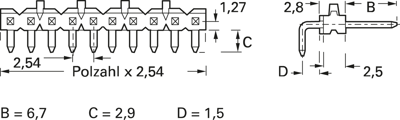

With 2.54 mm grid, with 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated, tinned solder pins. Dimensions: B 6.7 mm, C 2.9 mm, D 1.5 mm.
Type: 1-0825437-2
Number of poles: 12-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Version | pin header | |
| Connection | PCB connection | |
| Number of rows | 1 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Pin number | 12 pole | |
| Grid | 2.54 mm | |
| Breakable | Yes | |
| Colour | green | |
| Rated current | 5 A | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
