1-794953-4 | AMP

Plug housing, 14 pole, pitch 4.2 mm, straight, natural, 1-794953-4

Order No.: 35P5456
EAN: 4099889938784
MPN:
1-794953-4
Series: VAL-U-LOK

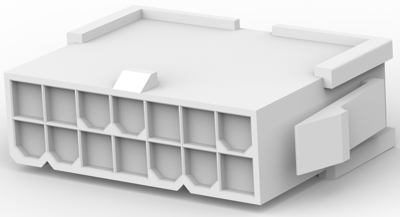

1-794953-4 AMP PCB Connection Systems Image 1

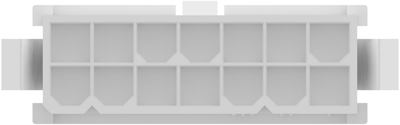

1-794953-4 AMP PCB Connection Systems Image 2

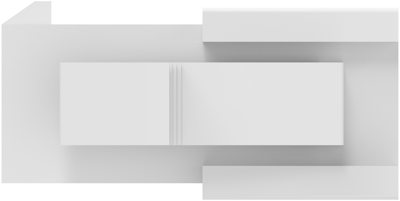

1-794953-4 AMP PCB Connection Systems Image 3

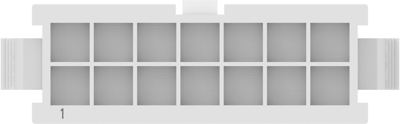

1-794953-4 AMP PCB Connection Systems Image 4

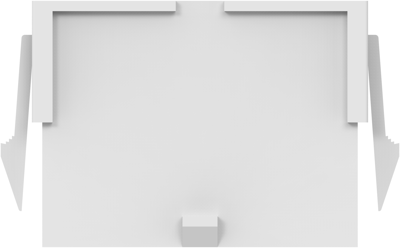

1-794953-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available in 5 Days: 14,352 pcs. - if ordered today
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3689 €
50 pcs.
0.3213 €
100 pcs.
0.2773 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-794953-4, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 14 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging), Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 14
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour natural
Type of locking Yes
Rated current 9 A
Grid 4.2 mm
Pin number 14 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
