1-794617-8 | AMP

Socket housing, 18 pole, pitch 3 mm, straight, black, 1-794617-8

Order No.: 71F5643
EAN: 4099891009991
MPN:
1-794617-8
1-0794617-8

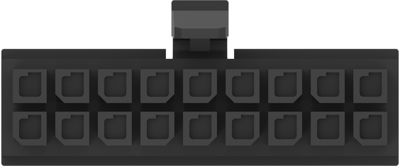

1-794617-8 AMP PCB Connection Systems Image 1

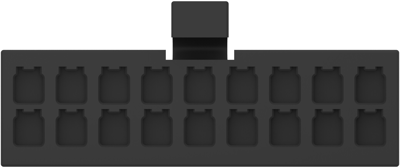

1-794617-8 AMP PCB Connection Systems Image 2

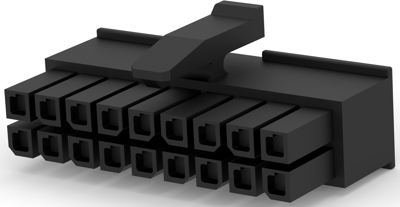

1-794617-8 AMP PCB Connection Systems Image 3

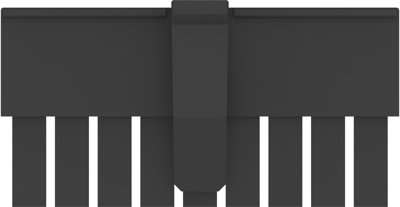

1-794617-8 AMP PCB Connection Systems Image 4

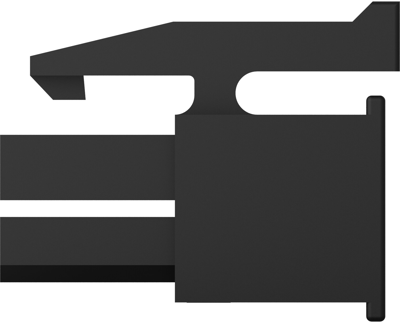

1-794617-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Available in 5 Days: 182 pcs. - if ordered today
Total Price:
8.93 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7850 €
10 pcs.
1.6541 €
25 pcs.
1.5351 €
50 pcs.
1.3923 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

Female connector housings, dual-row, bare, type ..-794.

Made of Nylon, flame retardant to UL 94 V-0.

Technical attributes (type, number of poles, length): 1-0794617-8, 18-pole, L 28.0 mm

Technical specifications
Filter Property Value
Grid 3 mm
Contact type socket
Version socket housing
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour black
Pin number 18 pole
Connection crimp connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
