1-794617-0 | AMP

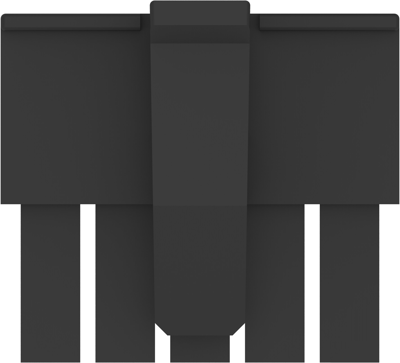

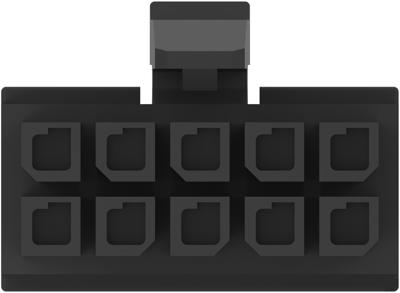

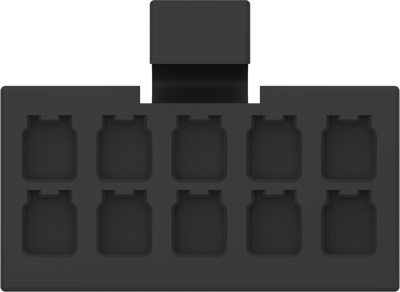

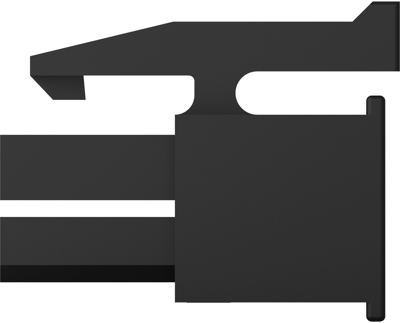

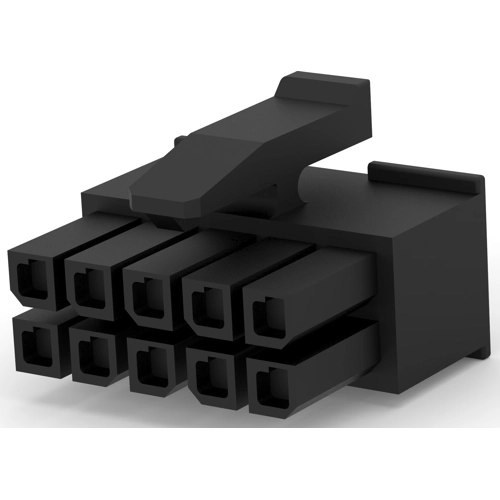

Socket housing, 10 pole, pitch 3 mm, straight, black, 1-794617-0
Unit Price (€ / pc.)
0.5950 € *
Next delivery: 325 pcs. on 2025-08-22
Available in 5 Days: 18,731 pcs. - if ordered today
Total Price:
2.97 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5950 €
10 pcs.
0.5593 €
25 pcs.
0.5117 €
50 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.
3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.
Female connector housings, dual-row, bare, type ..-794.
Made of Nylon, flame retardant to UL 94 V-0.
Technical attributes (type, number of poles, length): 1-0794617-0, 10-pole, 16.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Additional parts | unequipped | |
| Version | socket housing | |
| Orientation | straight | |
| Grid | 3 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | socket | |
| Colour | black | |
| Pin number | 10 pole | |
| Connection | crimp connection | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
