1-794106-0 | AMP

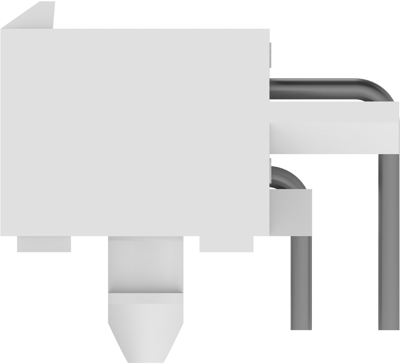

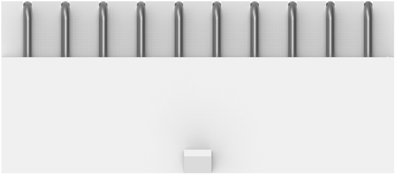

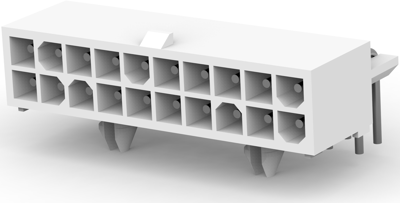

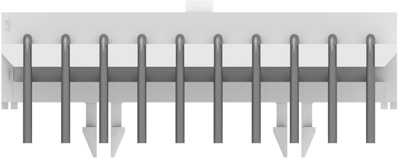

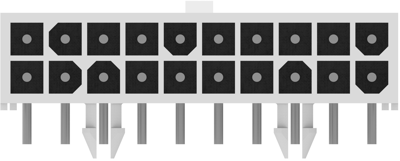

Pin header, 20 pole, pitch 4.14 mm, angled, white, 1-794106-0
Unit Price (€ / pc.)
4.9861 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
4.99 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9861 €
10 pcs.
4.5815 €
50 pcs.
4.1293 €
100 pcs.
3.7128 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-794106-0, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 20 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: angled
- Number of positions: 20
- Operating Temperature Range: -20 – 85 °C [-4 – 185 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Number of rows | 2 | |
| Rated voltage | 150 V | |
| Contact type | pin | |
| Type of locking | Yes | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Pin number | 20 pole | |
| Grid | 4.14 mm | |
| Connection plating | tin-plated | |
| Orientation | angled | |
| Additional parts | equipped | |
| Colour | white | |
| Version | pin header | |
| Rated current | 9.5 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
