1-794076-0 | AMP

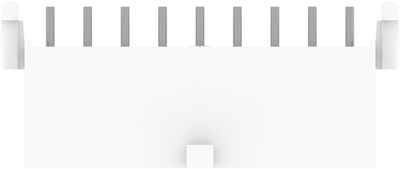

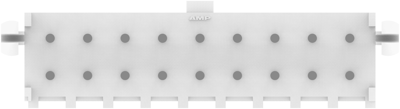

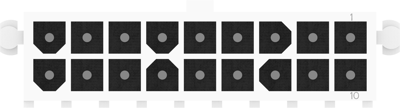

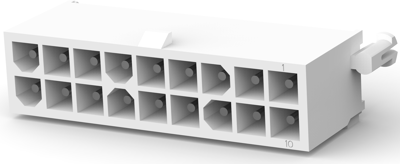

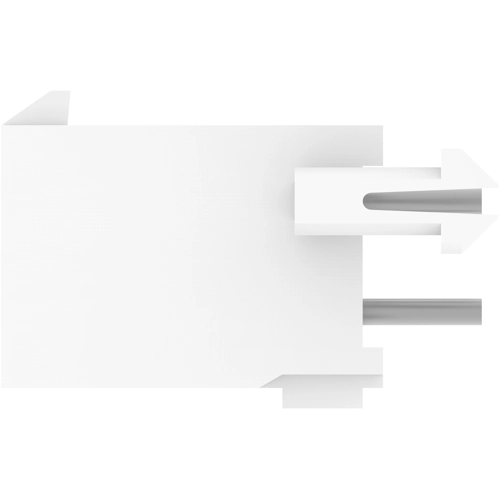

Pin header, 18 pole, pitch 4.14 mm, straight, white, 1-794076-0
Order No.: 34P9540
EAN: 4099889919981
MPN:
1-794076-0
Unit Price (€ / pc.)
7.6398 € *
Available in 5 Days: 400 pcs. - if ordered today
Total Price:
7.64 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6398 €
5 pcs.
7.2471 €
10 pcs.
6.7711 €
25 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-794076-0, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 18 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: straight
- Number of positions: 18
- Operating Temperature Range: -20 – 85 °C [-4 – 185 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.14 mm | |
| Contact type | pin | |
| Additional parts | equipped | |
| Colour | white | |
| Rated current | 9.5 A | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Pin number | 18 pole | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Type of locking | Yes | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
