1-794073-0 | AMP

Pin header, 8 pole, pitch 4.14 mm, straight, white, 1-794073-0

Order No.: 34P9484
EAN: 4099889919486
MPN:
1-794073-0

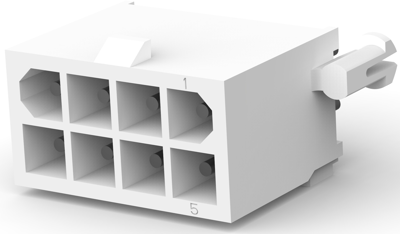

1-794073-0 AMP PCB Connection Systems Image 1

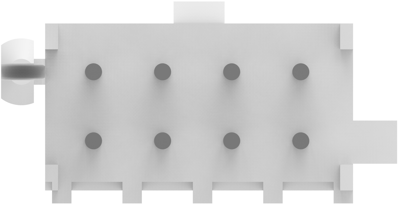

1-794073-0 AMP PCB Connection Systems Image 2

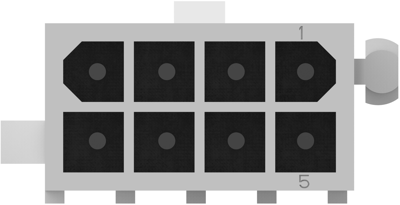

1-794073-0 AMP PCB Connection Systems Image 3

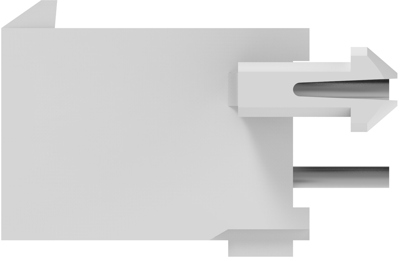

1-794073-0 AMP PCB Connection Systems Image 4

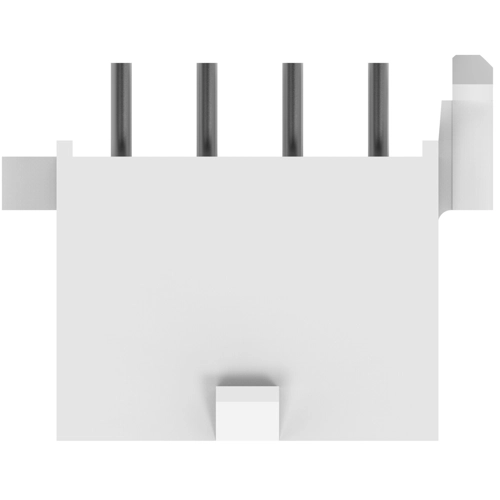

1-794073-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3800 € *
Available in 5 Days: 1,380 pcs. - if ordered today
Total Price:
11.90 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3800 €
10 pcs.
2.2015 €
25 pcs.
2.0468 €
50 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-794073-0, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 9.5 A
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.163 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Filter Property Value
Grid 4.14 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 9.5 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour white
Pin number 8 pole
Connection PCB connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
