1-794069-1 | AMP

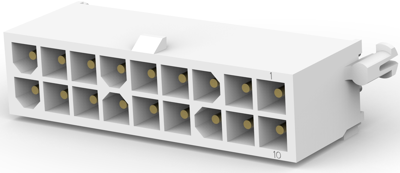

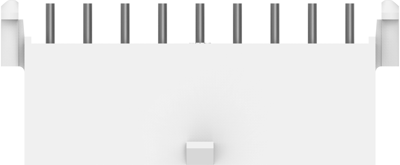

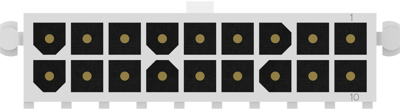

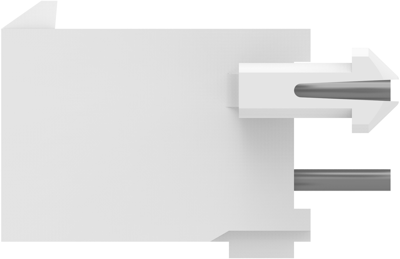

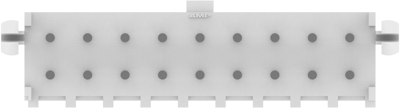

Pin header, 18 pole, pitch 4.14 mm, straight, white, 1-794069-1
Unit Price (€ / pc.)
8.9250 € *
Available in 5 Days: 570 pcs. - if ordered today
Total Price:
8.93 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9250 €
10 pcs.
8.2110 €
50 pcs.
7.3899 €
100 pcs.
6.6521 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-794069-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 18 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: straight
- Number of positions: 18
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Colour | white | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 9.5 A | |
| Grid | 4.14 mm | |
| Connection plating | tin-plated | |
| Pin number | 18 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 150 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
