1-770996-5 | AMP

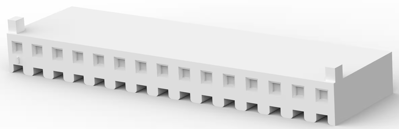

Socket housing, 15 pole, pitch 3.96 mm, straight, natural, 1-770996-5
Unit Price (€ / pc.)
2.4633 € *
Available in 5 Days: 7,274 pcs. - if ordered today
Total Price:
209.38 € *
Price list
Quantity
Price per unit*
85 pcs.
2.4633 €
200 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, 1-770996-5, AMP
Housing, Receptacle, Wire-to-Board, 15 Position, 3.96 mm centerline, Crimp, 1 Row, Natural, Wire and Cable, Power and Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 15 pole | |
| Colour | natural | |
| Contact type | socket | |
| Version | socket housing | |
| Connection | crimp connection | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
