1-770972-0 | AMP

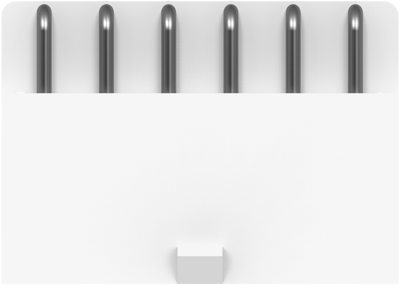

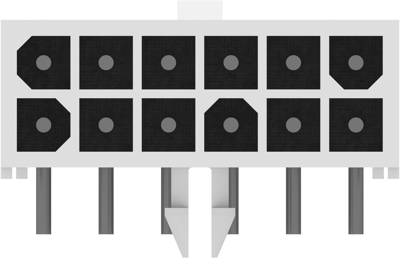

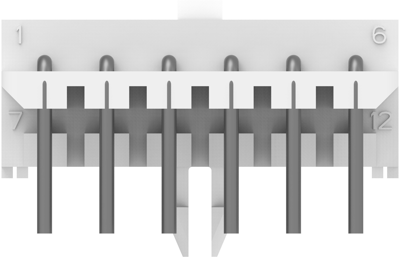

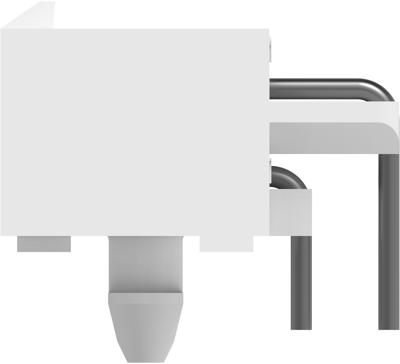

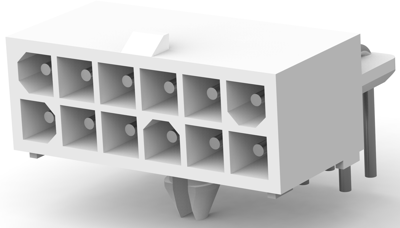

Pin header, 12 pole, pitch 4.14 mm, angled, white, 1-770972-0
Unit Price (€ / pc.)
3.0464 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 1-770972-0, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: angled
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Number of rows | 2 | |
| Grid | 4.14 mm | |
| Orientation | angled | |
| Pin number | 12 pole | |
| Connection | PCB connection | |
| Type of locking | Yes | |
| Colour | white | |
| Rated current | 9.5 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Rated voltage | 150 V |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
