1-770182-1 | AMP

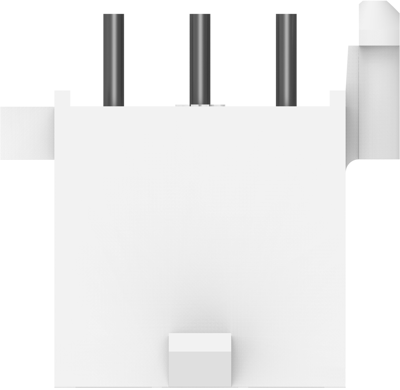

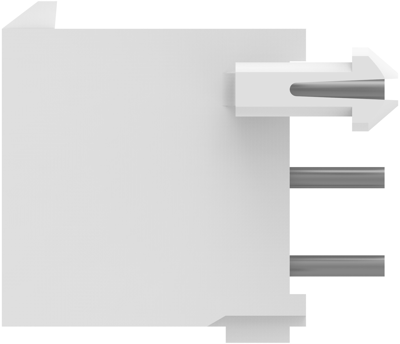

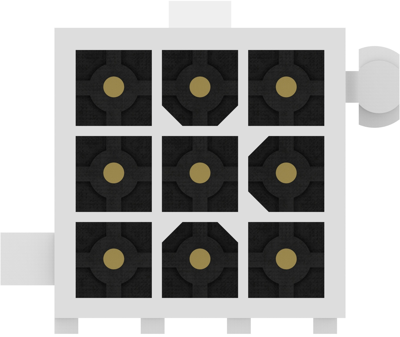

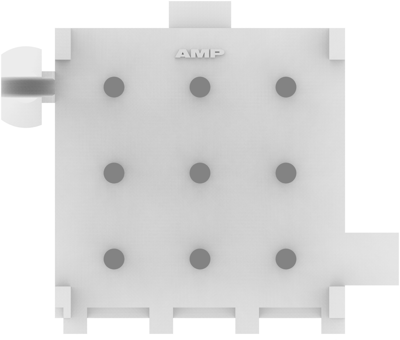

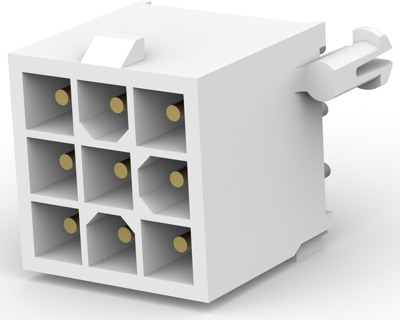

Pin header, 9 pole, pitch 4.14 mm, straight, white, 1-770182-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.0337 € *
Available in 12 Days: 354 pcs. - if ordered today
Total Price:
5.03 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0337 €
10 pcs.
4.5101 €
50 pcs.
4.2245 €
100 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1-770182-1, AMP
PCB Mount Header, Vertical, Wire-to-Board, 9-Positions, 4.14 mm Centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 9 pole | |
| Grid | 4.14 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 9.5 A | |
| Additional parts | equipped | |
| Number of rows | 3 | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
