1-770182-0 | AMP

Pin header, 9 pole, pitch 4.14 mm, straight, white, 1-770182-0

Order No.: 71F844
EAN: 4099891012090
MPN:
1-770182-0
1-0770182-0

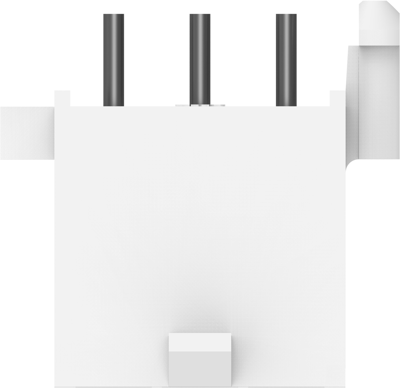

1-770182-0 AMP PCB Connection Systems Image 1

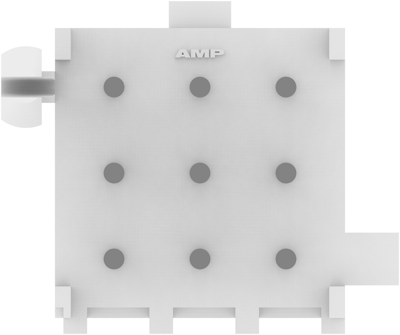

1-770182-0 AMP PCB Connection Systems Image 2

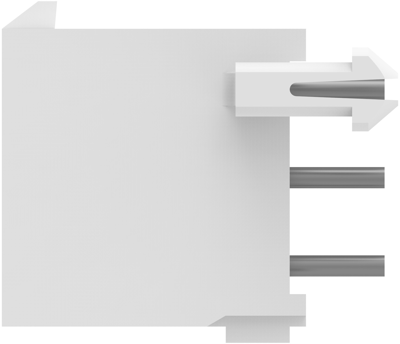

1-770182-0 AMP PCB Connection Systems Image 3

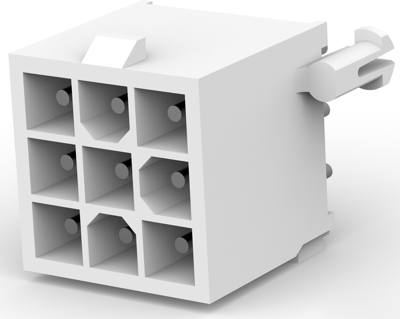

1-770182-0 AMP PCB Connection Systems Image 4

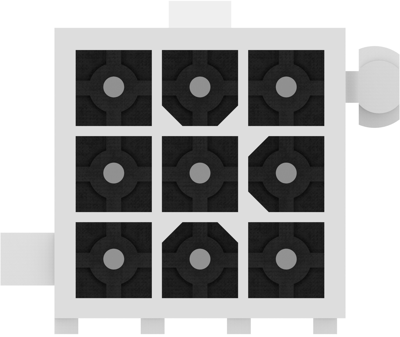

1-770182-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5347 € *
Available: 44 pcs.
Available in 5 Days: 707 pcs. - if ordered today
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3324 €
50 pcs.
2.1182 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, bare, 1 to 15 poles, series Mini-Universal-Mate-N-Lok, type TE Connectivity/AMP 0-017.

Made of polyamide 6.6, plain-colored, compliant with UL 94 V-0; Housing: polarized and lockable in the cut-out. With plug/receptacle housing for mixed assembly. Contact pitch: 4.2 mm. Current rating: max. 5.0 A. Operating voltage: 300 VAC. Operating temperatures: –20 to +95 °C. The crimp snap-in contacts are described below.

Pin sockets, loaded, type 1-077.

With straight solder pins, tinned or gold-plated finish. Corresponding connector housings with female contacts.

Technical attributes (type, number of poles, contact finish): 1-0770182-0, 9-pole, tinned

Technical specifications
Colour white
Type of locking Yes
contact surface tin-plated
Rated current 9.5 A
Grid 4.14 mm
Connection plating tin-plated
Pin number 9 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 300 V
Number of rows 3
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
