1-6450869-4 | AMP

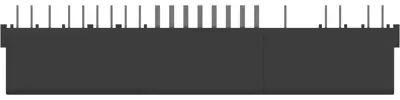

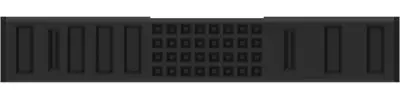

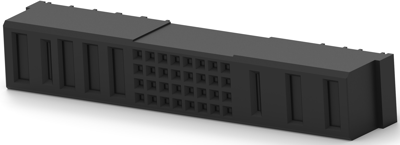

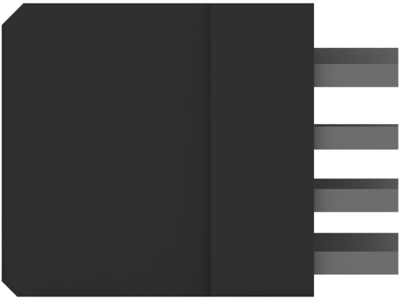

Socket header, 40 pole, pitch 2.54 mm, straight, black, 1-6450869-4
Unit Price (€ / pc.)
29.2978 € *
Available in 5 Days: 196 pcs. - if ordered today
Total Price:
29.30 € *
Price list
Quantity
Price per unit*
1 pcs.
29.2978 €
10 pcs.
26.9535 €
50 pcs.
24.5378 €
100 pcs.
22.0745 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-6450869-4, AMP
Board-to-Board, Printed Circuit Board, Vertical, 40 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 40
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Rated current: 42 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 4 | |
| Grid | 2.54 mm | |
| Orientation | straight | |
| Pin number | 40 pole | |
| Connection | press-fit | |
| Colour | black | |
| Rated current | 42 A | |
| Additional parts | equipped | |
| Contact type | socket | |
| Version | socket header | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
