1-6450869-3 | AMP

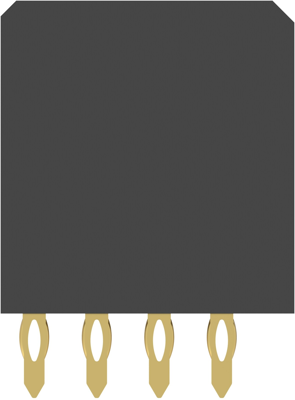

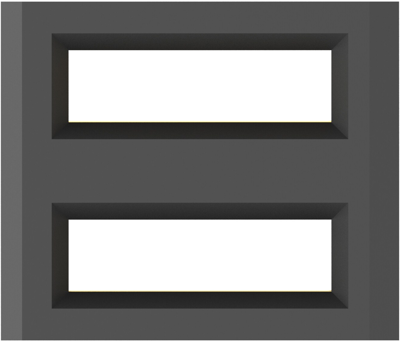

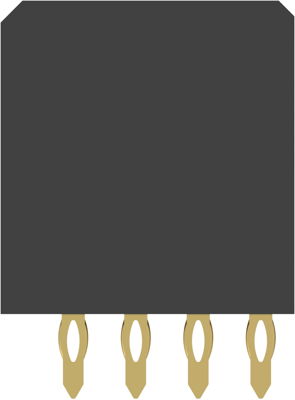

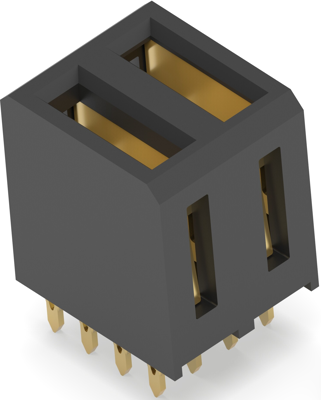

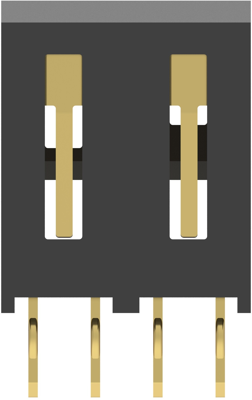

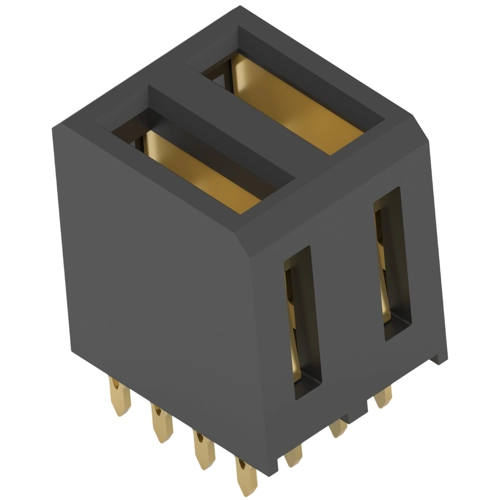

Socket header, 2 pole, pitch 5.08 mm, straight, black, 1-6450869-3
Order No.: 37P1474
EAN: 4099889952926
MPN:
1-6450869-3
Unit Price (€ / pc.)
3.5819 € *
Standard delivery time from the manufacturer is: 19 Weeks
PCB Connection System, 1-6450869-3, AMP
Board-to-Board, Printed Circuit Board, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Rated current: 42 A
- Centerline (Pitch): 5.08 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 42 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 5.08 mm | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Connection | press-fit | |
| Pin number | 2 pole | |
| Version | socket header | |
| Number of rows | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
