1-641215-8 | AMP

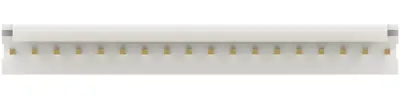

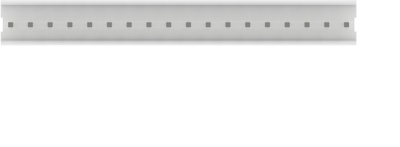

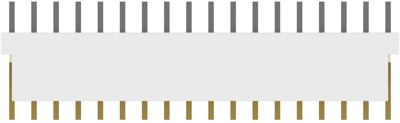

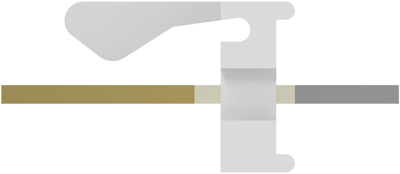

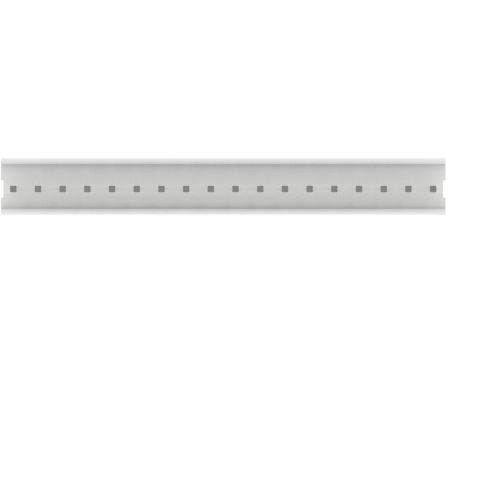

Pin header, 18 pole, pitch 2.54 mm, straight, natural, 1-641215-8
Order No.: 59F357
MPN:
1-641215-8
Unit Price (€ / pc.)
8.0087 € *
Available in 5 Days: 1,554 pcs. - if ordered today
Total Price:
8.01 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0087 €
10 pcs.
7.4375 €
25 pcs.
6.9377 €
50 pcs.
6.3070 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1-641215-8, AMP
PCB mount header, vertical, Wire-to-Board, 18 Positions, 2.54 mm centerline, Partially Shrouded, Gold (Au), Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Colour | natural | |
| Type of locking | Yes | |
| Pin number | 18 pole | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Contact type | pin | |
| Rated current | 5 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Grid | 2.54 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
