1-640513-0 | AMP

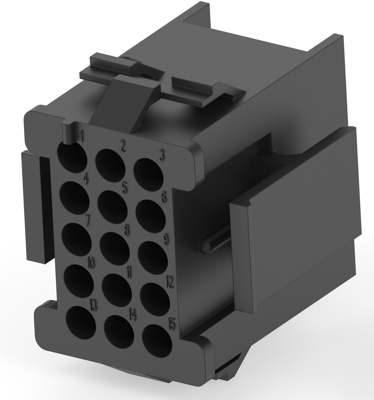

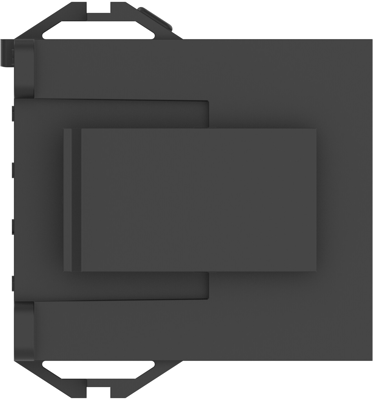

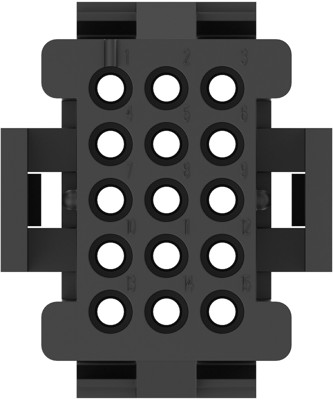

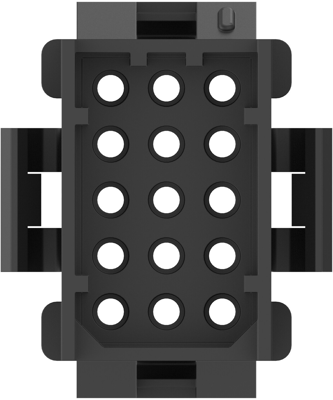

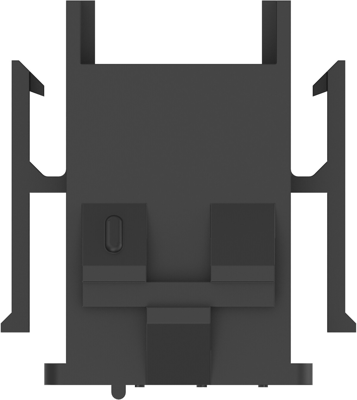

Socket housing, 15 pole, pitch 4.2 mm, straight, black, 1-640513-0
Order No.: 39P2294
EAN: 4099889979169
MPN:
1-640513-0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.6652 € *
Available in 12 Days: 198 pcs. - if ordered today
Socket housing, 1-640513-0, AMP
15-Positions, Cap, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 4.2 mm Centerline, 5 Row.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | pin | |
| Pin number | 15 pole | |
| Grid | 4.2 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 150 V | |
| Rated current | 9 A | |
| Additional parts | unequipped | |
| Number of rows | 5 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
