1-640511-0 | AMP

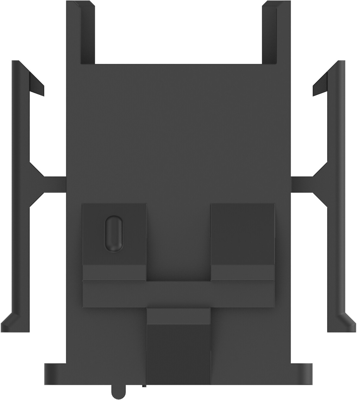

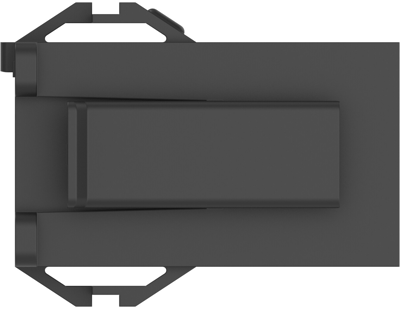

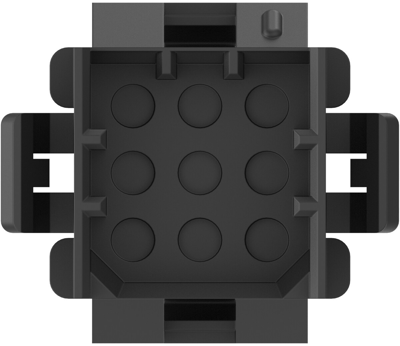

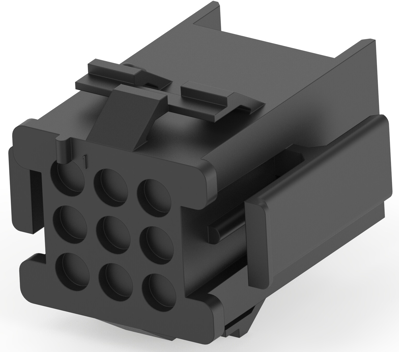

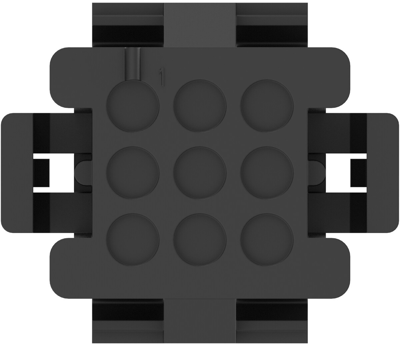

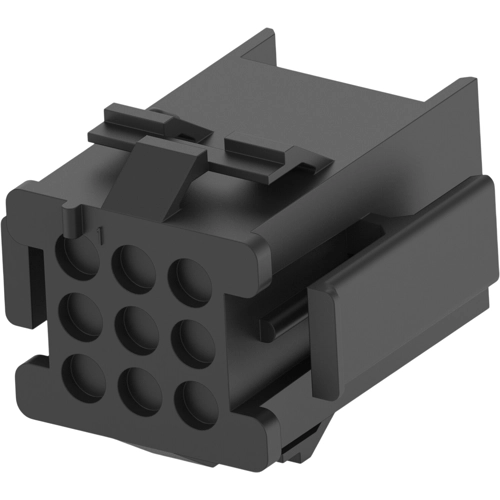

Socket housing, 9 pole, pitch 4.2 mm, straight, black, 1-640511-0
Order No.: 39P2290
EAN: 4099889979121
MPN:
1-640511-0
Unit Price (€ / pc.)
3.9865 € *
Available in 5 Days: 51,519 pcs. - if ordered today
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9865 €
10 pcs.
3.7009 €
25 pcs.
3.4510 €
50 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-640511-0, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: black
- Number of positions: 9
- Operating Temperature Range: -55 – 85 °C [-67 – 185 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.19 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 3 | |
| Grid | 4.2 mm | |
| Connection | crimp connection | |
| Version | socket housing | |
| Contact type | pin | |
| Rated voltage | 150 V | |
| Additional parts | unequipped | |
| Type of locking | Yes | |
| Orientation | straight | |
| Rated current | 9 A | |
| Colour | black | |
| Pin number | 9 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
