1-640510-0 | AMP

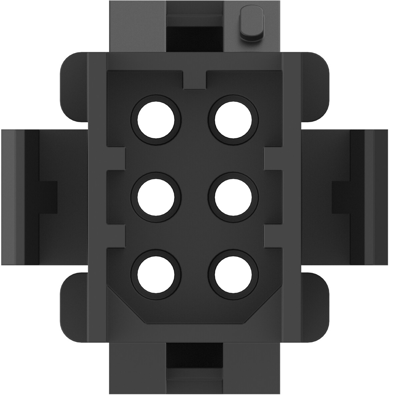

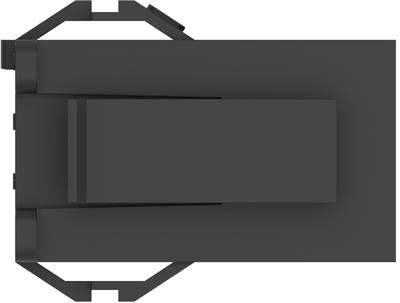

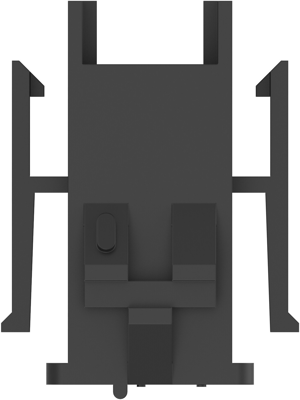

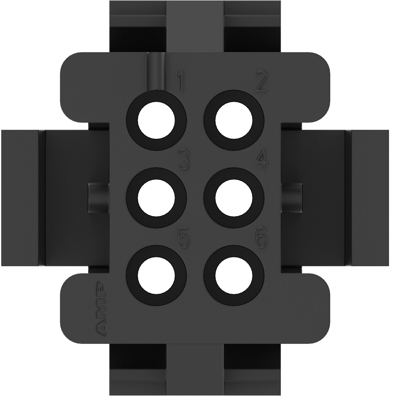

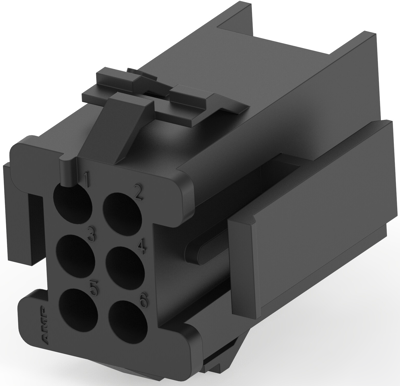

Pin header, 6 pole, pitch 4.2 mm, straight, black, 1-640510-0
Order No.: 39P2288
EAN: 4099889979107
MPN:
1-640510-0
Unit Price (€ / pc.)
4.5339 € *
Available in 5 Days: 4,964 pcs. - if ordered today
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.2126 €
25 pcs.
3.9270 €
50 pcs.
3.5700 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-640510-0, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -55 – 85 °C [-67 – 185 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.19 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Grid | 4.2 mm | |
| Type of locking | Yes | |
| Colour | black | |
| Version | pin header | |
| Additional parts | unequipped | |
| Rated current | 9 A | |
| Number of rows | 3 | |
| Pin number | 6 pole | |
| Orientation | straight | |
| Connection | crimp connection | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
