1-640457-5 | AMP

Pin header, 15 pole, pitch 2.54 mm, angled, natural, 1-640457-5

Order No.: 35P1855
EAN: 4099889928631
MPN:
1-640457-5
Series: MTA-100

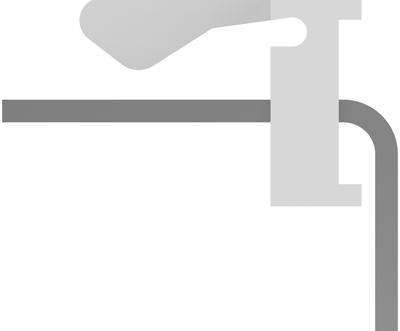

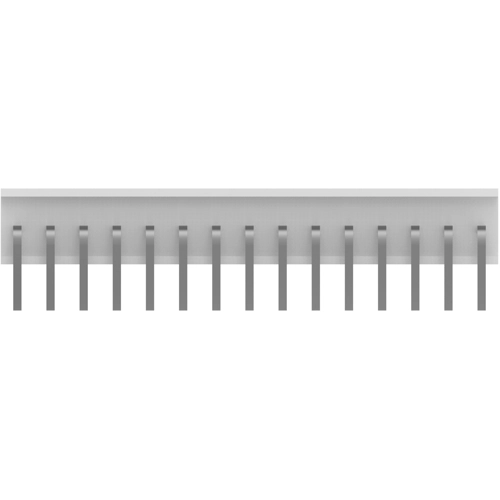

1-640457-5 AMP PCB Connection Systems Image 1

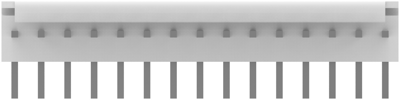

1-640457-5 AMP PCB Connection Systems Image 2

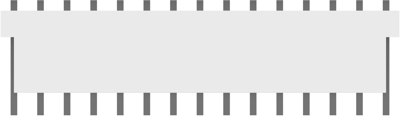

1-640457-5 AMP PCB Connection Systems Image 3

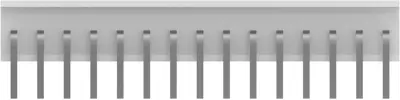

1-640457-5 AMP PCB Connection Systems Image 4

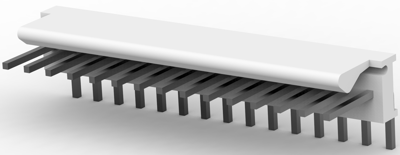

1-640457-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5355 € *
Available in 5 Days: 2,618 pcs. - if ordered today
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5355 €
10 pcs.
0.4879 €
25 pcs.
0.4522 €
50 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-640457-5, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 15 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 15
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 150 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 15 pole
Connection PCB connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
