1-640454-3 | AMP

Pin header, 13 pole, pitch 2.54 mm, straight, natural, 1-640454-3

Order No.: 35P1839
EAN: 4099889928501
MPN:
1-640454-3
Series: MTA-100

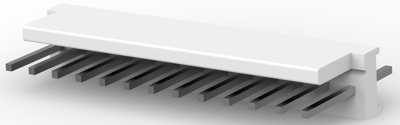

1-640454-3 AMP PCB Connection Systems Image 1

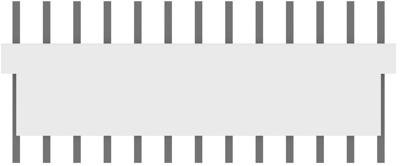

1-640454-3 AMP PCB Connection Systems Image 2

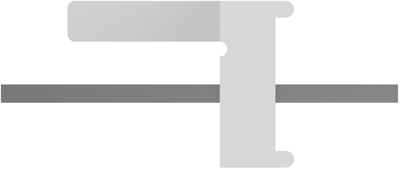

1-640454-3 AMP PCB Connection Systems Image 3
1-640454-3 AMP PCB Connection Systems Image 4
1-640454-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.3927 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-640454-3, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 13 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 13
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 150 V
Orientation straight
Additional parts equipped
Number of rows 1
Colour natural
Pin number 13 pole
Connection solder pin
Logistics
Property Value
Country of origin CN
Customs tariff number 85366910
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
