1-640452-1 | AMP

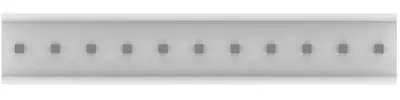

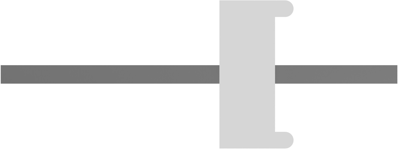

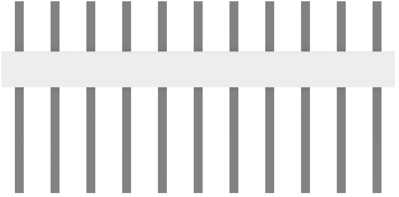

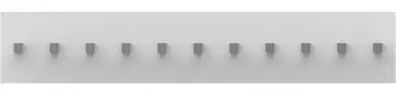

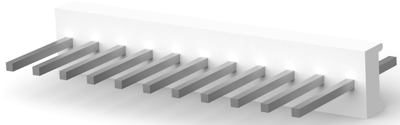

Pin header, 11 pole, pitch 2.54 mm, straight, natural, 1-640452-1
Unit Price (€ / pc.)
0.9401 € *
Available in 5 Days: 642 pcs. - if ordered today
Header assembly, 1-640452-1, AMP
The 1-640452-1 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Version | pin header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Type of locking | No | |
| Number of rows | 1 | |
| Contact type | pin | |
| Colour | natural | |
| Pin number | 11 pole | |
| Connection | solder connection | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
