1-640445-6 | AMP

Pin header, 16 pole, pitch 3.96 mm, straight, natural, 1-640445-6

Order No.: 35P1133
EAN: 4099889922660
MPN:
1-640445-6
Series: MTA-156

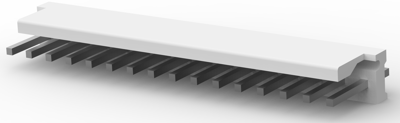

1-640445-6 AMP PCB Connection Systems Image 1

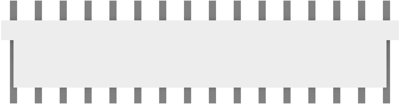

1-640445-6 AMP PCB Connection Systems Image 2

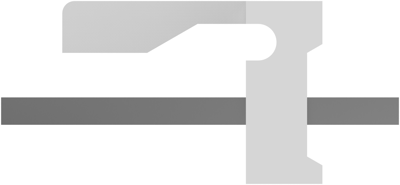

1-640445-6 AMP PCB Connection Systems Image 3
1-640445-6 AMP PCB Connection Systems Image 4
1-640445-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7251 € *
Available in 5 Days: 881 pcs. - if ordered today
Total Price:
2.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7251 €

PCB Connection System, 1-640445-6, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 16
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated current 7 A
Rated voltage 150 V
Version pin header
Number of rows 1
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 16 pole
Grid 3.96 mm
Type of locking Yes
Contact type pin
Colour natural
Connection plating tin-plated
Connection PCB connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
