1-640445-3 | AMP

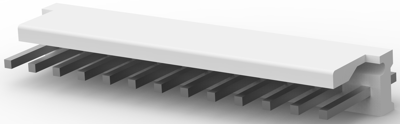

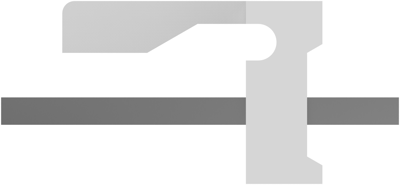

Pin header, 13 pole, pitch 3.96 mm, straight, natural, 1-640445-3
Unit Price (€ / pc.)
1.4756 € *
Available in 5 Days: 1,025 pcs. - if ordered today
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
10 pcs.
1.3447 €
50 pcs.
1.2019 €
100 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-640445-3, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 13 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester
- Housing Color: natural
- Orientation: straight
- Number of positions: 13
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Rated voltage | 150 V | |
| Pin number | 13 pole | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Colour | natural | |
| Grid | 3.96 mm | |
| Rated current | 7 A | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Version | pin header | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
