1-640389-5 | AMP

Pin header, 15 pole, pitch 3.96 mm, angled, natural, 1-640389-5

Order No.: 35P1131
EAN: 4099889922646
MPN:
1-640389-5
Series: MTA-156

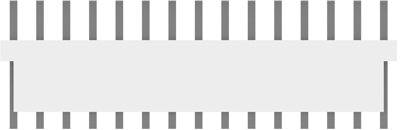

1-640389-5 AMP PCB Connection Systems Image 1

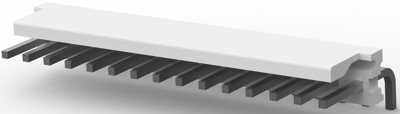

1-640389-5 AMP PCB Connection Systems Image 2

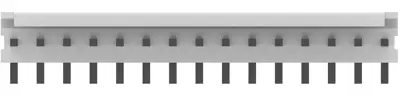

1-640389-5 AMP PCB Connection Systems Image 3

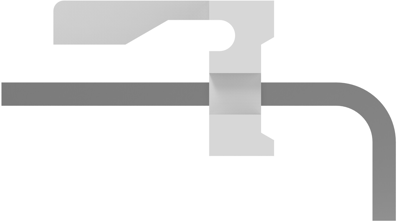

1-640389-5 AMP PCB Connection Systems Image 4

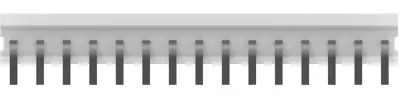

1-640389-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Available in 5 Days: 595 pcs. - if ordered today
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
2.1420 €
50 pcs.
1.9278 €
100 pcs.
1.7374 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-640389-5, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 15 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 15
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version pin header
Colour natural
Type of locking Yes
Pin number 15 pole
Additional parts equipped
Connection PCB connection
Connection plating tin-plated
Rated voltage 150 V
Contact type pin
Rated current 7 A
contact surface tin-plated
Orientation angled
Grid 3.96 mm
Number of rows 1
Logistics
Property Value
Country of origin MX
Customs tariff number 85366910
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
