1-640389-3 | AMP

Pin header, 13 pole, pitch 3.96 mm, angled, natural, 1-640389-3

Order No.: 35P1120
EAN: 4099889922547
MPN:
1-640389-3
Series: MTA-156

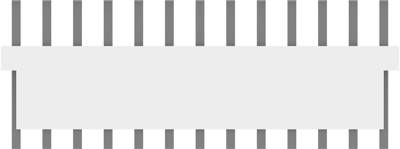

1-640389-3 AMP PCB Connection Systems Image 1

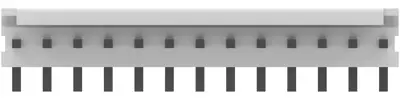

1-640389-3 AMP PCB Connection Systems Image 2

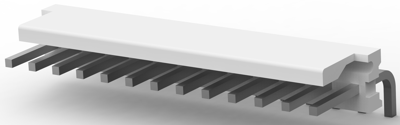

1-640389-3 AMP PCB Connection Systems Image 3

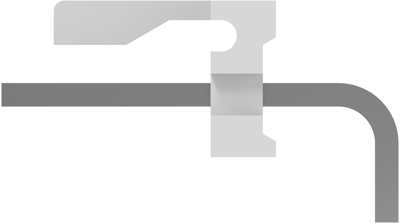

1-640389-3 AMP PCB Connection Systems Image 4

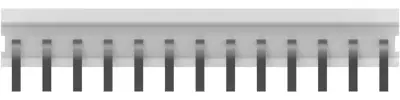

1-640389-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4875 € *
Available in 5 Days: 478 pcs. - if ordered today
Total Price:
1.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4875 €

PCB Connection System, 1-640389-3, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 13 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 13
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated current 7 A
Rated voltage 150 V
Version pin header
Number of rows 1
Orientation angled
Additional parts equipped
contact surface tin-plated
Pin number 13 pole
Grid 3.96 mm
Type of locking Yes
Contact type pin
Colour natural
Connection plating tin-plated
Connection PCB connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
