1-640388-7 | AMP

Pin header, 17 pole, pitch 3.96 mm, straight, natural, 1-640388-7

Order No.: 35P1138
EAN: 4099889922714
MPN:
1-640388-7

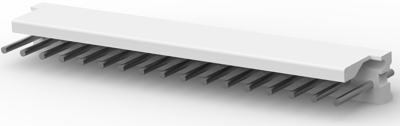

1-640388-7 AMP PCB Connection Systems Image 1

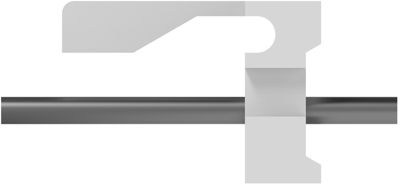

1-640388-7 AMP PCB Connection Systems Image 2

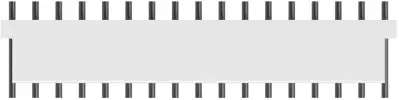

1-640388-7 AMP PCB Connection Systems Image 3

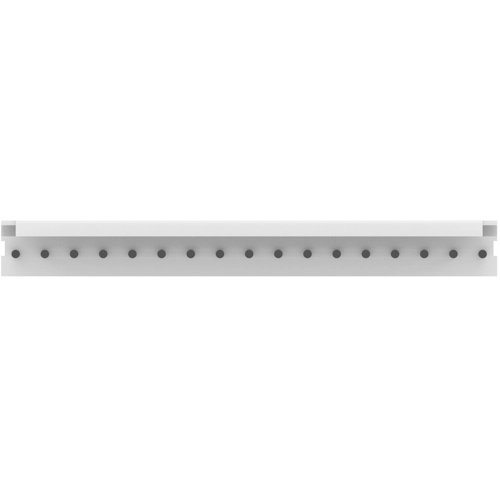

1-640388-7 AMP PCB Connection Systems Image 4
1-640388-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0472 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0472 €
10 pcs.
0.9639 €
25 pcs.
0.9044 €
50 pcs.
0.8211 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-640388-7, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 17 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 17
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 17 pole
Connection solder pin
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
