1-640385-5 | AMP

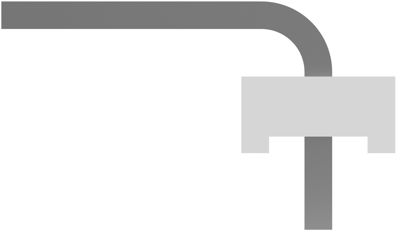

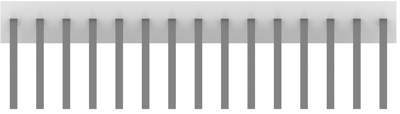

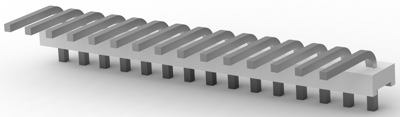

Pin header, 15 pole, pitch 3.96 mm, angled, natural, 1-640385-5
Unit Price (€ / pc.)
2.1182 € *
Available in 5 Days: 974 pcs. - if ordered today
Total Price:
10.59 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1182 €
10 pcs.
1.9635 €
25 pcs.
1.8207 €
50 pcs.
1.6541 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 1-640385-5, AMP
Rectangular power connector, Header, Plug, Wire-to-Board, 15 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 7 A | |
| Rated voltage | 600 V | |
| Orientation | angled | |
| Type of locking | No | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 15 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
