1-5499922-0 | AMP

Pin header, 50 pole, pitch 2.54 mm, straight, black, 1-5499922-0

Order No.: 36P5699
EAN: 4099889945423
MPN:
1-5499922-0
Series: AMP-LATCH

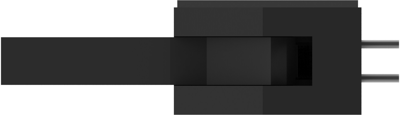

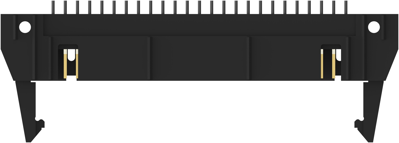

1-5499922-0 AMP PCB Connection Systems Image 1
1-5499922-0 AMP PCB Connection Systems Image 2
1-5499922-0 AMP PCB Connection Systems Image 3
1-5499922-0 AMP PCB Connection Systems Image 4
1-5499922-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
8.3538 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
8.35 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3538 €
10 pcs.
7.6874 €
50 pcs.
6.9139 €
100 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-5499922-0, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 50 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass, Phosphor Bronze
  • Housing Material: Glass Filled Nylon/Polyester
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 50
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
contact surface gold-plated
Connection PCB connection
Number of rows 2
Colour black
Contact type pin
Additional parts equipped
Rated current 1 A
Rated voltage 150 V
Pin number 50 pole
Orientation straight
Version pin header
Type of locking Yes
Connection plating tin-plated
Grid 2.54 mm
Logistics
Customs tariff number 85366990
Country of origin US
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
