1-535542-9 | AMP

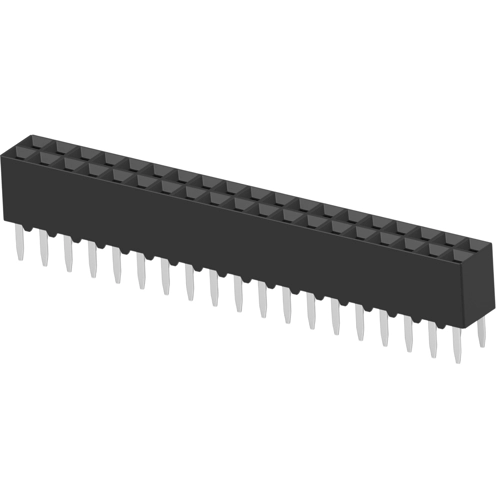

Socket header, 38 pole, pitch 2.54 mm, straight, black, 1-535542-9
Unit Price (€ / pc.)
5.5811 € *
Available in 5 Days: 264 pcs. - if ordered today
Total Price:
5.58 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5811 €
10 pcs.
5.1884 €
25 pcs.
4.8433 €
50 pcs.
4.4030 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-535542-9, AMP
Board-to-Board, Printed Circuit Board, Vertical, 38 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: straight
- Number of positions: 38
- Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.15 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Rated current | 3 A | |
| Version | socket header | |
| Connection | PCB connection | |
| contact surface | gold-plated | |
| Number of rows | 2 | |
| Colour | black | |
| Grid | 2.54 mm | |
| Contact type | socket | |
| Pin number | 38 pole | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | No |
