1-5353190-0 | AMP

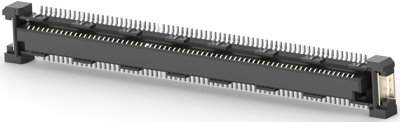

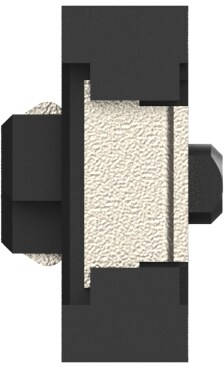

Socket header, 140 pole, pitch 0.6 mm, straight, black, 1-5353190-0
Unit Price (€ / pc.)
13.9587 € *
Available: 0 pcs.
Available in 5 Days: 3,000 pcs.
Leadtime: 11 Weeks **
Total Price:
13,958.70 € *
Price list
Quantity
Price per unit*
1000 pcs.
13.9587 €
2000 pcs.
12.6973 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-5353190-0, AMP
Board-to-Board, Printed Circuit Board, Vertical, 140 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 140
- Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.6 mm
- PCB Mount Retention: With
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | vergoldet | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 150 V | |
| Rated current | 500 mA | |
| Orientation | gerade | |
| Pin number | 140-polig | |
| Grid | 0.6 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
