1-534206-0 | AMP

Socket header, 20 pole, pitch 2.54 mm, straight, black, 1-534206-0

Order No.: 37P6197
EAN: 4099889960273
MPN:
1-534206-0
Series: AMPMODU

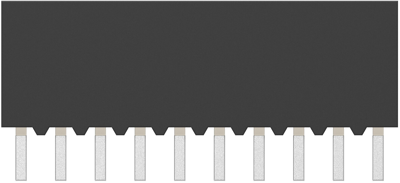

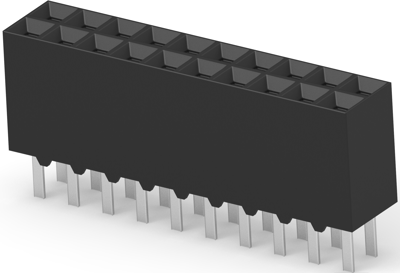

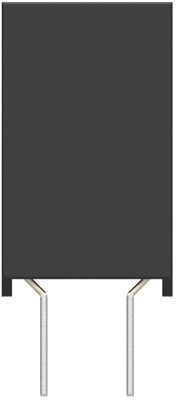

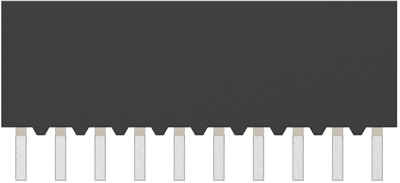

1-534206-0 AMP PCB Connection Systems Image 1
1-534206-0 AMP PCB Connection Systems Image 2
1-534206-0 AMP PCB Connection Systems Image 3
1-534206-0 AMP PCB Connection Systems Image 4
1-534206-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.7239 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
5.72 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7239 €
10 pcs.
5.2717 €
50 pcs.
4.7362 €
100 pcs.
4.2721 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-534206-0, AMP

Board-to-Board, Printed Circuit Board, Vertical, 20 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Polyester - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 2 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 20 pole
Version socket header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type socket
Rated voltage 150 V
Number of rows 2
Logistics
Country of origin NL
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform No
