1-5316560-1 | AMP

Socket header, 160 pole, pitch 0.6 mm, straight, black, 1-5316560-1

Order No.: 59F777
MPN:
1-5316560-1

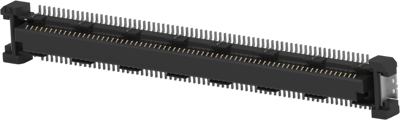

1-5316560-1 AMP PCB Connection Systems Image 1

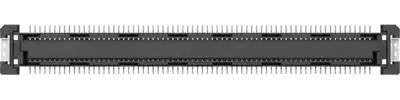

1-5316560-1 AMP PCB Connection Systems Image 2

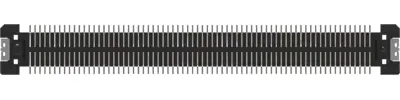

1-5316560-1 AMP PCB Connection Systems Image 3
1-5316560-1 AMP PCB Connection Systems Image 4
1-5316560-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
17.0051 € *
Available in 5 Days: 57 pcs. - if ordered today
Total Price:
17.01 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0051 €
10 pcs.
15.7913 €
25 pcs.
14.7322 €
50 pcs.
13.3994 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 1-5316560-1, AMP

PCB Mount Receptacle, Vertical, Board-to-Board, 160 Position, 0.6 mm Centerline, Gold (Au), Surface Mount, Signal, Black, Tray, Free Height.

Technical specifications
Filter Property Value
Rated voltage 50 V
Pin number 160 pole
contact surface gold-plated
Contact type socket
Number of rows 2
Connection solder connection
Colour black
Grid 0.6 mm
Rated current 0.5 A
Orientation straight
Connection plating gold-plated
Version socket header
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
