1-5177986-3 | AMP

Pin header, 80 pole, pitch 0.8 mm, straight, natural, 1-5177986-3

Order No.: 36P4733
EAN: 4099889940398
MPN:
1-5177986-3
Series: 0.8mm FH

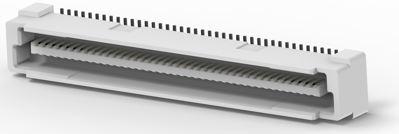

1-5177986-3 AMP PCB Connection Systems Image 1

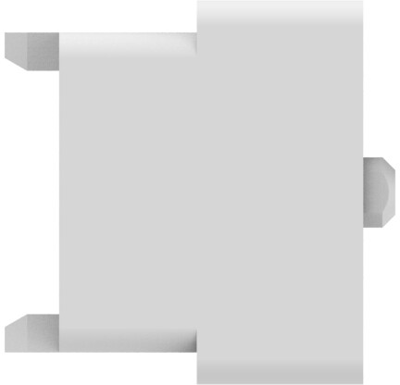

1-5177986-3 AMP PCB Connection Systems Image 2
1-5177986-3 AMP PCB Connection Systems Image 3
1-5177986-3 AMP PCB Connection Systems Image 4
1-5177986-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.7953 € *
Available in 5 Days: 4,800 pcs. - if ordered today
Total Price:
4,636.24 € *
Price list
Quantity
Price per unit*
800 pcs.
5.7953 €
2400 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-5177986-3, AMP

Board-to-Board, Printed Circuit Board, Vertical, 80 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Matte
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 80
  • Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
contact surface gold-plated
Rated current 500 mA
Grid 0.8 mm
Connection plating tin-plated
Pin number 80 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 150 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
