1-487378-5 | AMP

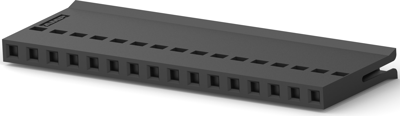

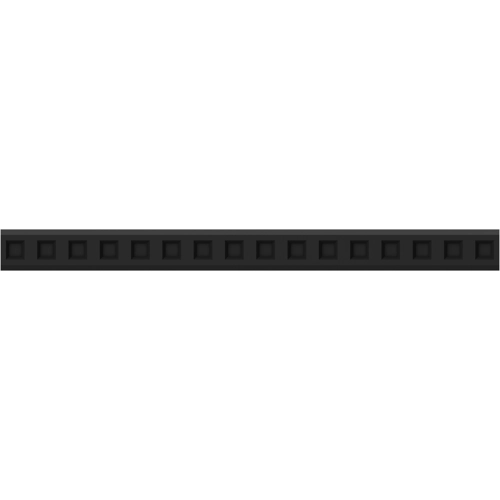

Socket housing, 16 pole, pitch 2.54 mm, straight, black, 1-487378-5
Order No.: 36P7983
EAN: 4099889948837
MPN:
1-487378-5
Unit Price (€ / pc.)
1.4637 € *
Available in 5 Days: 7,991 pcs. - if ordered today
FFC Connectors, 1-487378-5, TE Connectivity
Connector & Housing Type: Receptacle, FFC Connector Product Type: Housing, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: FFC, Number of Positions: 16, Number of Rows: 1, Insulation Resistance: 5000 MΩ, Contact Type: Socket, Mating Retention: Without, Mating Alignment: Without, Panel Mount Feature: Without, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Material: Thermoplastic, Centerline (Pitch): 2.54 mm, FFC Cable Entry: Straight, Housing Color: Black, Operating Temperature Range: -65 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Quantity: 1, Packaging Method: Package
Technical specifications
| Colour | black | |
| Grid | 2.54 mm | |
| Pin number | 16 pole | |
| Version | socket housing | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | socket | |
| Rated voltage | 300 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
