1-480709-0 | AMP

Socket housing, 12 pole, pitch 6.35 mm, straight, natural, 1-480709-0

Order No.: 35P5037
EAN: 4099889936742
MPN:
1-480709-0

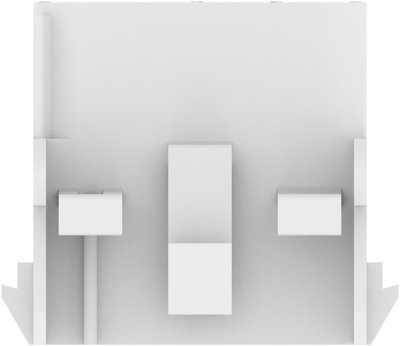

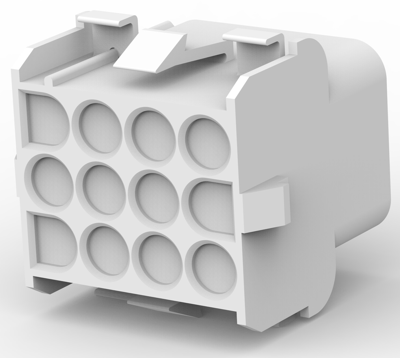

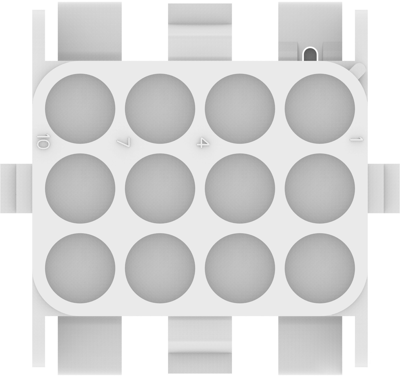

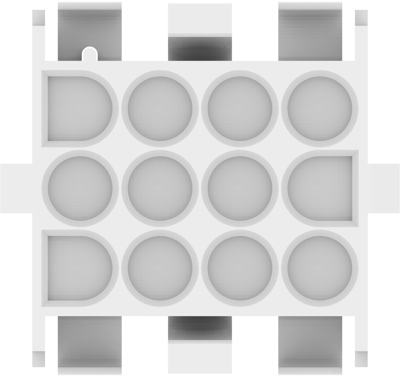

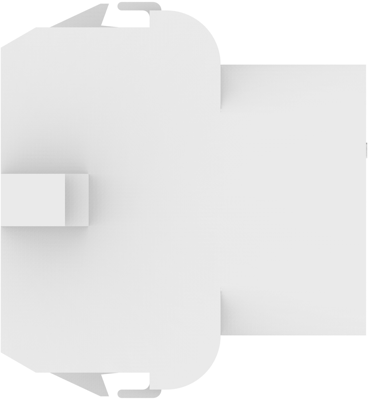

1-480709-0 AMP PCB Connection Systems Image 1
1-480709-0 AMP PCB Connection Systems Image 2
1-480709-0 AMP PCB Connection Systems Image 3
1-480709-0 AMP PCB Connection Systems Image 4
1-480709-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available in 5 Days: 45,933 pcs. - if ordered today
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4165 €
10 pcs.
0.3808 €
25 pcs.
0.3570 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-480709-0, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type socket/pin
Version socket housing
Rated current 19 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Number of rows 3
Colour natural
Pin number 12 pole
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
