1-480707-9 | AMP

Socket housing, 9 pole, pitch 6.35 mm, straight, black, 1-480707-9

Order No.: 35P5013
EAN: 4099889936537
MPN:
1-480707-9

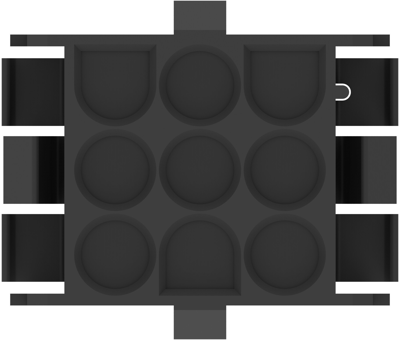

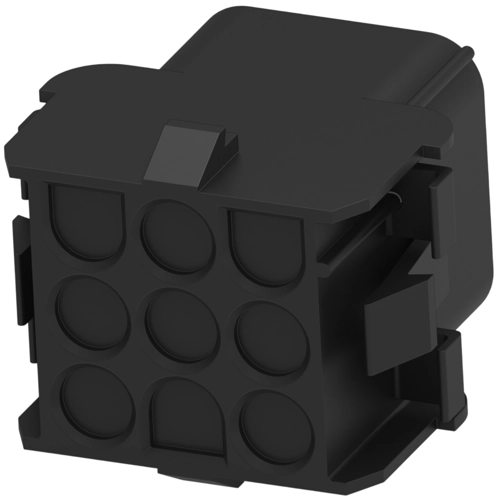

1-480707-9 AMP PCB Connection Systems Image 1

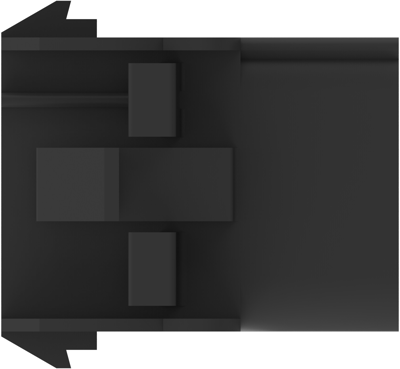

1-480707-9 AMP PCB Connection Systems Image 2

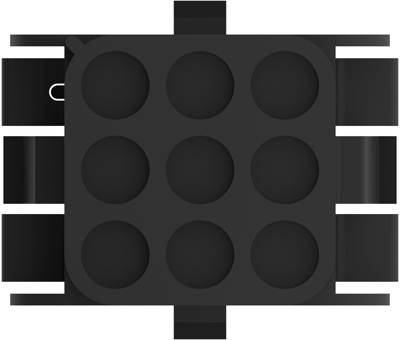

1-480707-9 AMP PCB Connection Systems Image 3

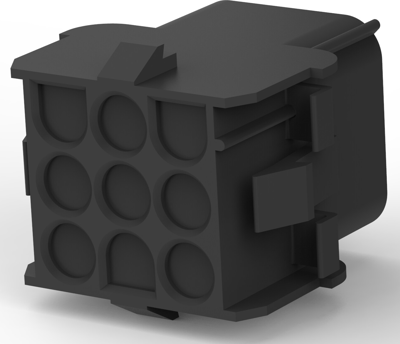

1-480707-9 AMP PCB Connection Systems Image 4

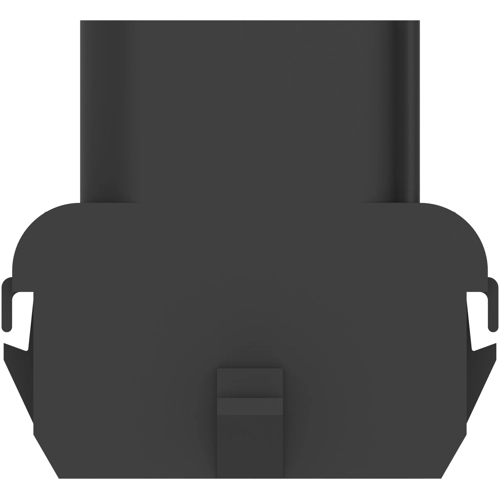

1-480707-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
3,140.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
9100 pcs.
0.3451 €

PCB Connection System, 1-480707-9, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour black
Type of locking Yes
Rated current 19 A
Grid 6.35 mm
Pin number 9 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
