1-480706-0 | AMP

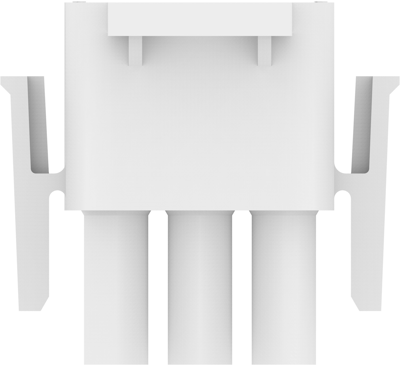

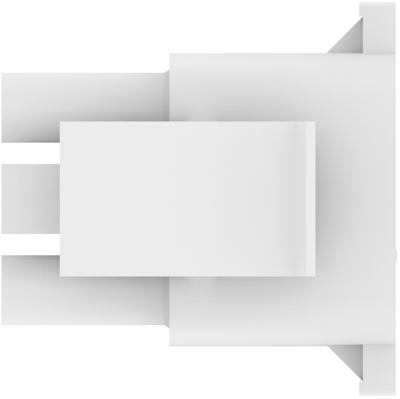

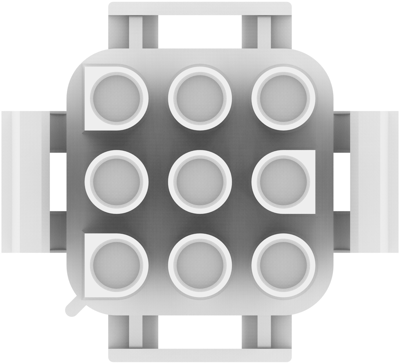

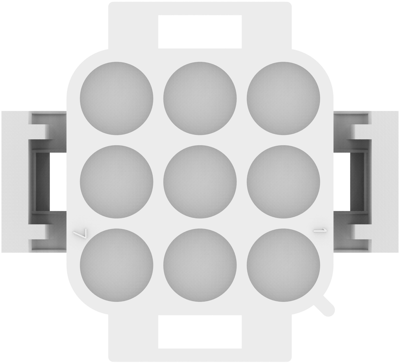

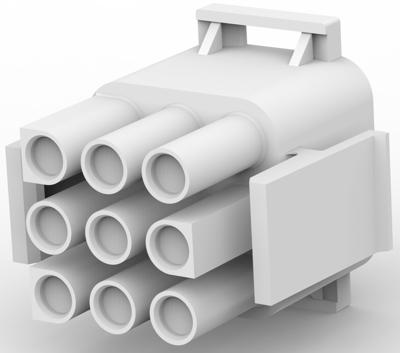

Plug housing, 9 pole, pitch 6.35 mm, straight, natural, 1-480706-0
Unit Price (€ / pc.)
0.5712 € *
Available in 5 Days: 22,841 pcs. - if ordered today
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-480706-0, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 19 A
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Connection | crimp connection | |
| Rated current | 19 A | |
| Colour | natural | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Number of rows | 3 | |
| Type of locking | Yes | |
| Pin number | 9 pole | |
| Contact type | socket/pin | |
| Additional parts | unequipped | |
| Version | plug housing | |
| Grid | 6.35 mm |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
