1-480704-0 | AMP

Plug housing, 6 pole, pitch 6.35 mm, straight, natural, 1-480704-0

Order No.: 35P5002
EAN: 4099889936438
MPN:
1-480704-0

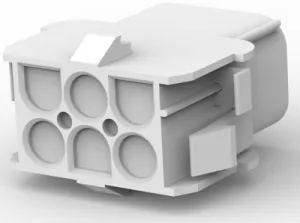

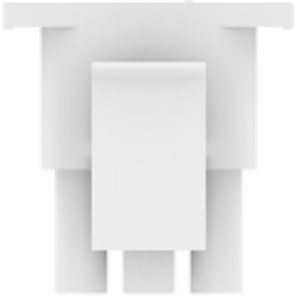

1-480704-0 AMP PCB Connection Systems Image 1
1-480704-0 AMP PCB Connection Systems Image 2
1-480704-0 AMP PCB Connection Systems Image 3
1-480704-0 AMP PCB Connection Systems Image 4
1-480704-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 99 pcs.
Available in 5 Days: 5,170 pcs. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3332 €
10 pcs.
0.3058 €
25 pcs.
0.2856 €
50 pcs.
0.2582 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-480704-0, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type socket/pin
Version plug housing
Rated current 19 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 6 pole
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
