1-480703-2 | AMP

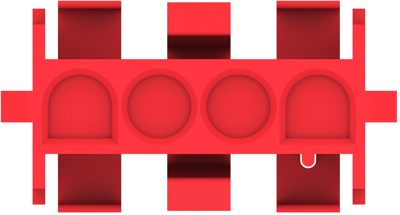

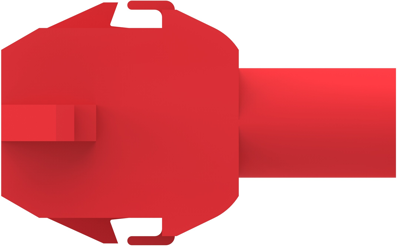

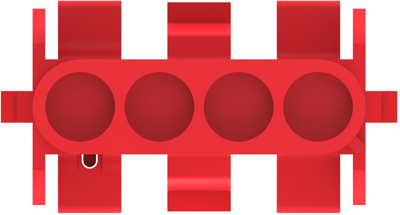

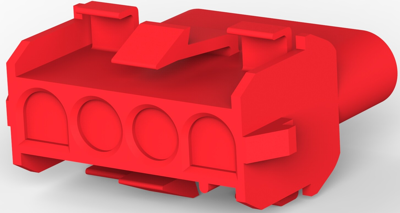

Socket housing, 4 pole, pitch 6.35 mm, straight, red, 1-480703-2
Unit Price (€ / pc.)
0.2927 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2927 €
10 pcs.
0.2725 €
25 pcs.
0.2535 €
50 pcs.
0.2309 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-480703-2, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 19 A | |
| Colour | red | |
| Additional parts | unequipped | |
| Contact type | socket/pin | |
| Grid | 6.35 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Pin number | 4 pole | |
| Version | socket housing | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
