1-480702-2 | AMP

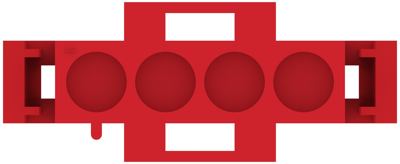

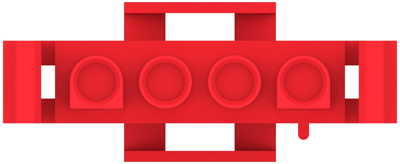

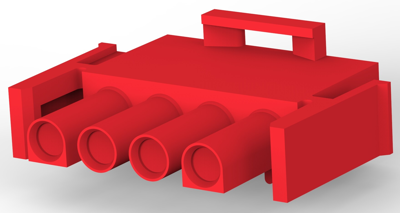

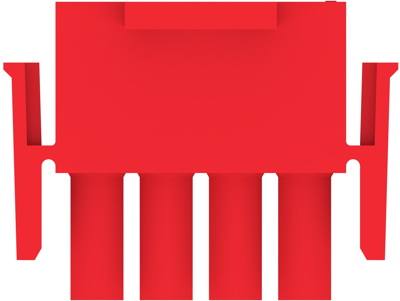

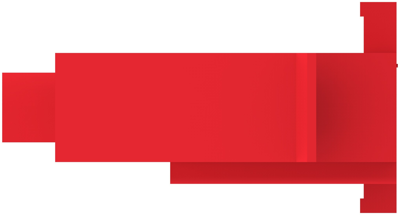

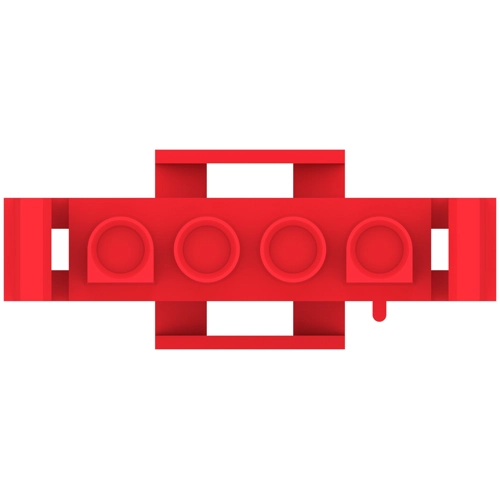

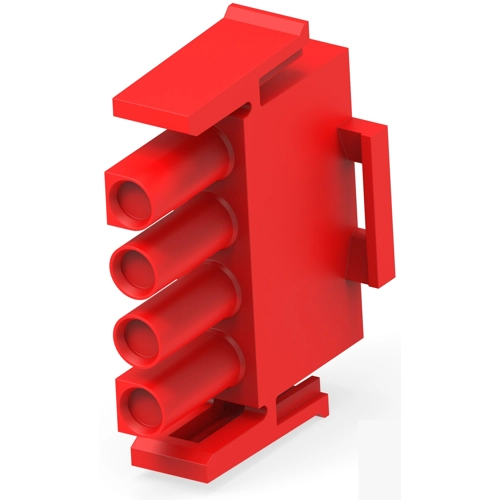

Plug housing, 4 pole, pitch 6.35 mm, straight, red, 1-480702-2
Unit Price (€ / pc.)
0.3570 € *
Available in 5 Days: 9,100 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3570 €
10 pcs.
0.3332 €
25 pcs.
0.3058 €
50 pcs.
0.2773 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-480702-2, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 4
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6.35 mm | |
| Contact type | socket/pin | |
| Version | plug housing | |
| Rated current | 19 A | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | red | |
| Pin number | 4 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
