1-480701-9 | AMP

Socket housing, 3 pole, pitch 6.35 mm, straight, black, 1-480701-9

Order No.: 35P4933
EAN: 4099889935806
MPN:
1-480701-9

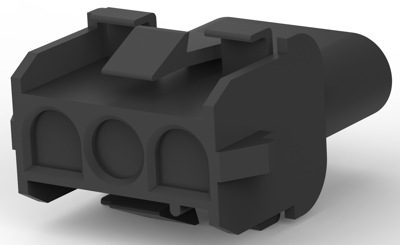

1-480701-9 AMP PCB Connection Systems Image 1

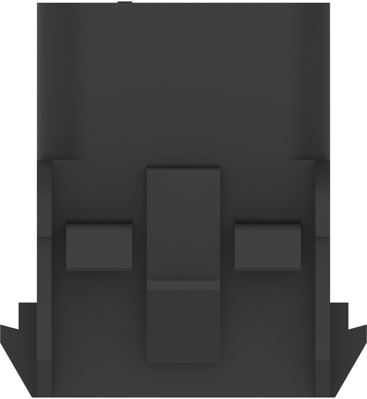

1-480701-9 AMP PCB Connection Systems Image 2

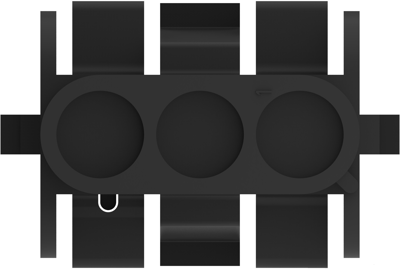

1-480701-9 AMP PCB Connection Systems Image 3

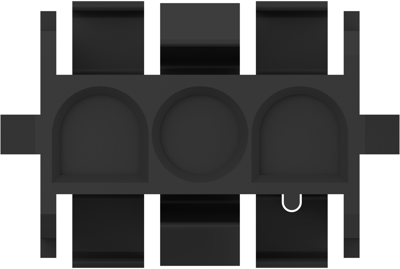

1-480701-9 AMP PCB Connection Systems Image 4

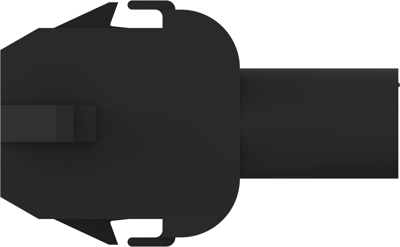

1-480701-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-480701-9, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Number of rows 1
Rated voltage 600 V
Contact type socket/pin
Type of locking Yes
Connection crimp connection
Pin number 3 pole
Grid 6.35 mm
Orientation straight
Additional parts unequipped
Colour black
Version socket housing
Rated current 19 A
Logistics
Country of origin MX
Customs tariff number 85472000
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
