1-480700-2 | AMP

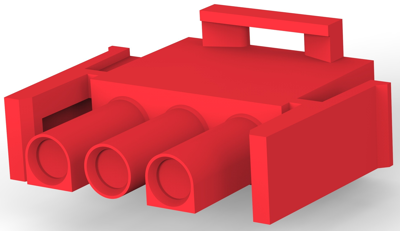

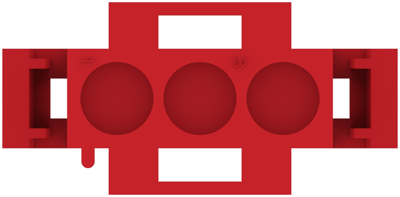

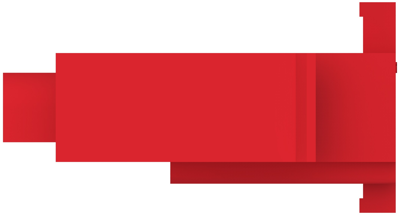

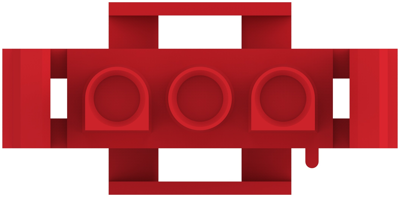

Plug housing, 3 pole, pitch 6.35 mm, straight, red, 1-480700-2
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.5950 €
50 pcs.
0.5355 €
100 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-480700-2, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Grid | 6.35 mm | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Connection | crimp connection | |
| Type of locking | Yes | |
| Colour | red | |
| Rated current | 19 A | |
| Additional parts | unequipped | |
| Contact type | socket/pin | |
| Version | plug housing | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
