1-480700-0 | AMP

Plug housing, 3 pole, pitch 6.35 mm, straight, natural, 1-480700-0

Order No.: 35P4950
EAN: 4099889935974
MPN:
1-480700-0

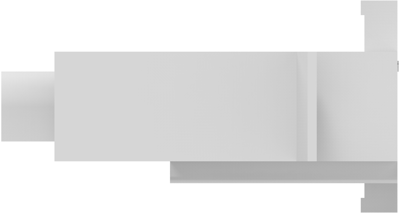

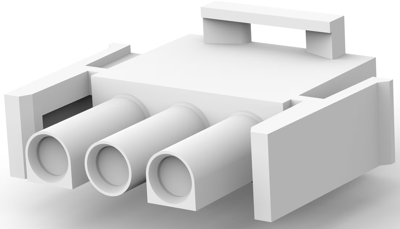

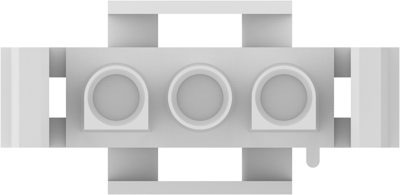

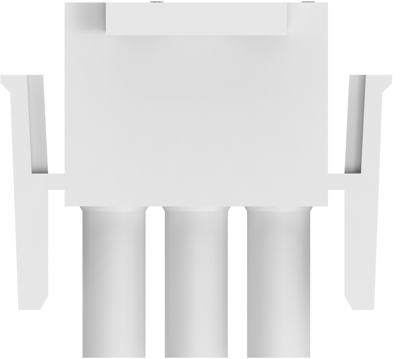

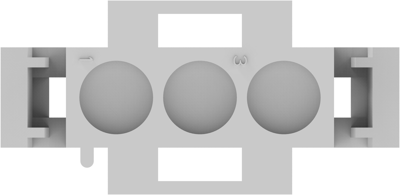

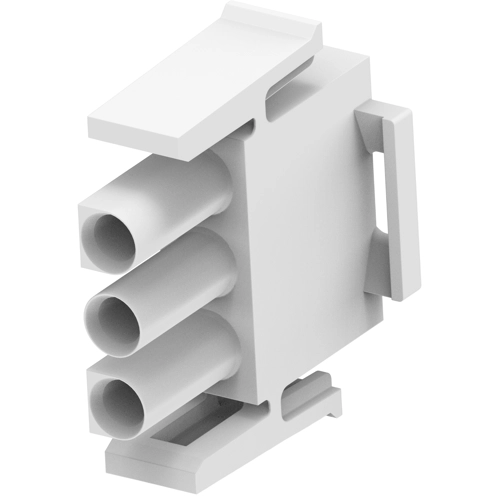

1-480700-0 AMP PCB Connection Systems Image 1
1-480700-0 AMP PCB Connection Systems Image 2
1-480700-0 AMP PCB Connection Systems Image 3
1-480700-0 AMP PCB Connection Systems Image 4
1-480700-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Available: 2,225 pcs.
Available in 5 Days: 46,804 pcs. - if ordered today
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3094 €
10 pcs.
0.2904 €
25 pcs.
0.2713 €
50 pcs.
0.2451 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-480700-0, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type socket/pin
Version plug housing
Rated current 19 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 3 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
